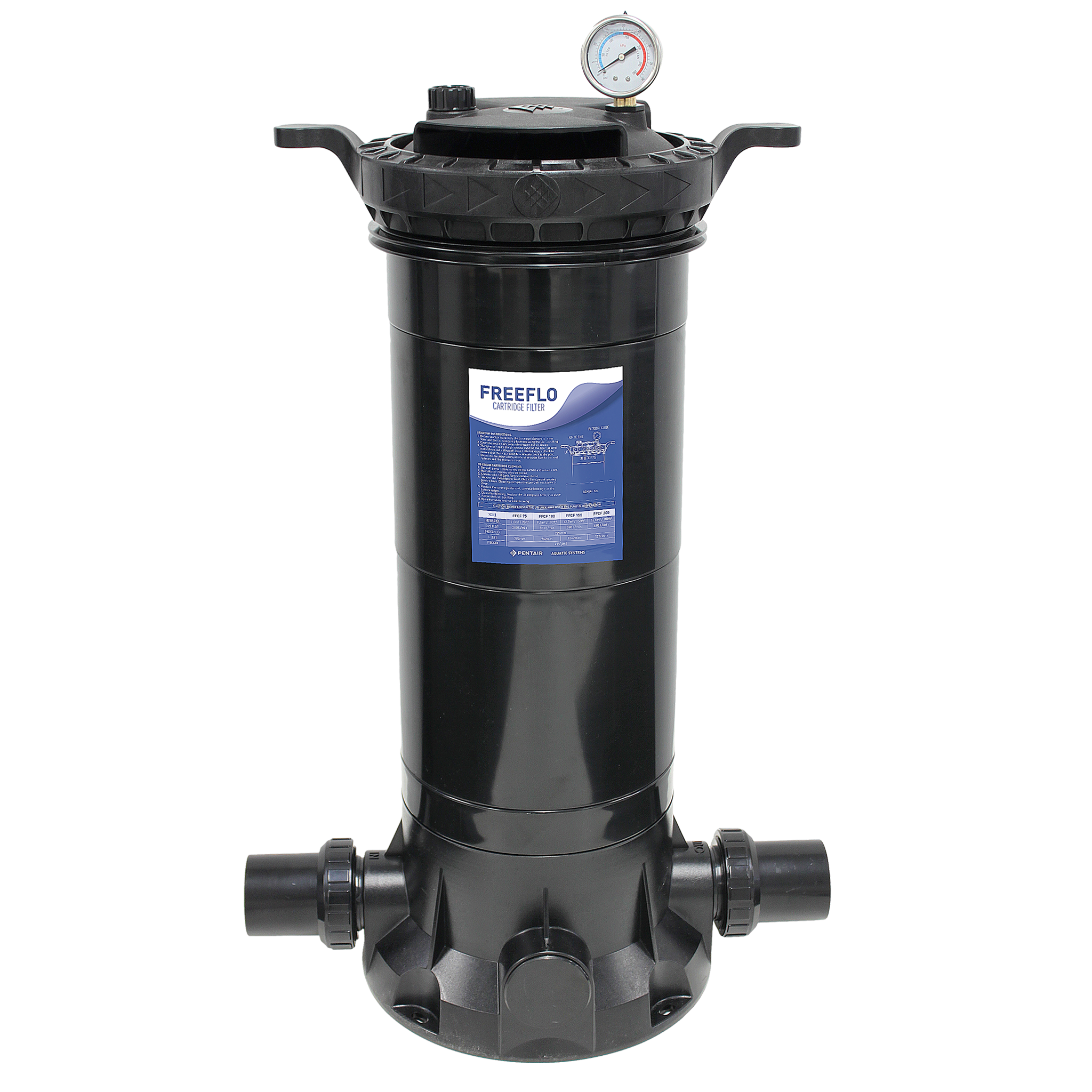

FreeFlo Cartridge Filter

THE SPARKLING CLEAR WATER DIFFERENCE

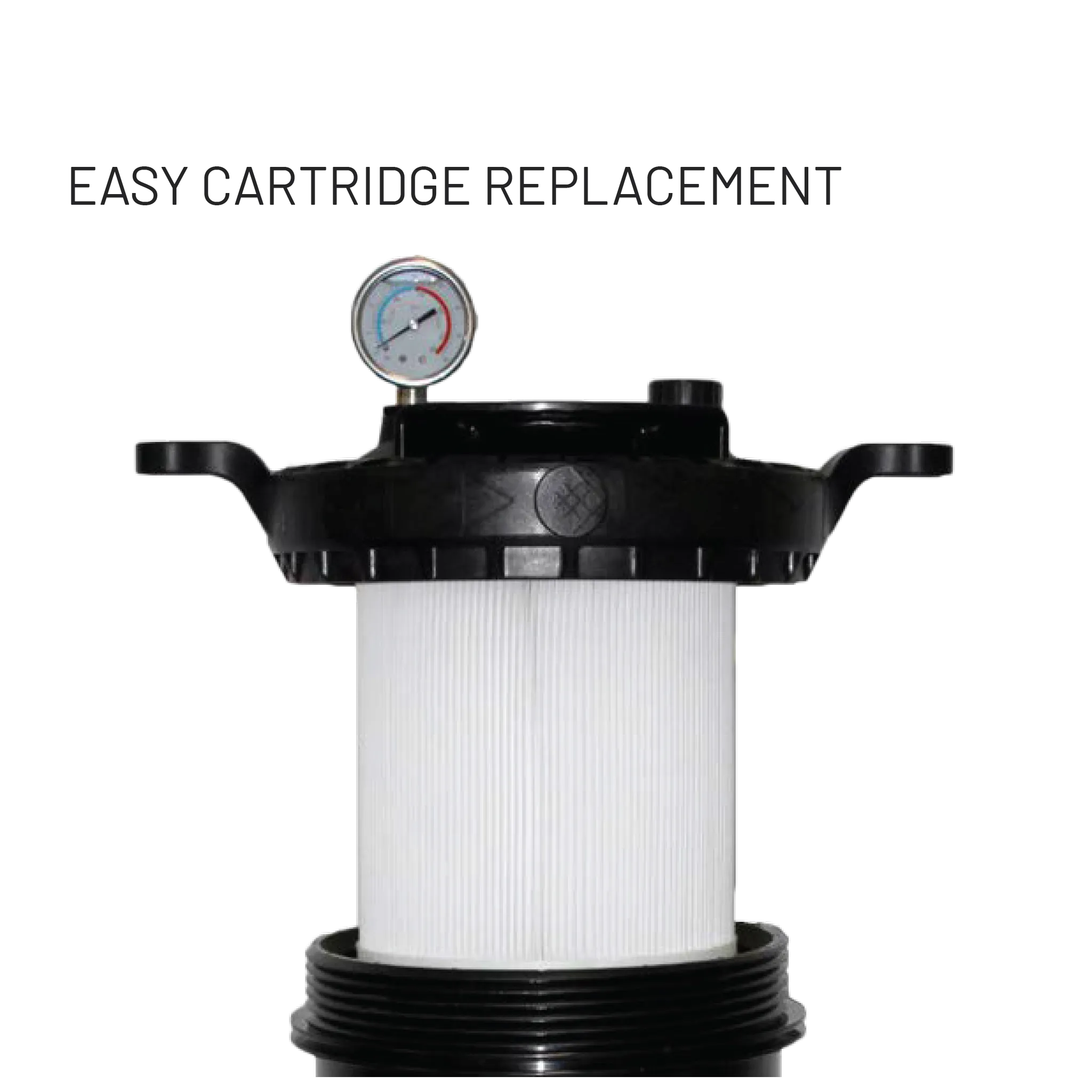

The FreeFlo Cartridge filter combines top-end filter performance with low maintenance. This dependable design uses special filter elements to strip tiny particles from your pool water…particles as small as 8 microns. (An average grain of beach sand is 1,000microns!) Plus, cleaning is a breeze. Open the top, remove the cartridge, hose it off and the FreeFlo filter is ready to go again.

All components of the FreeFlo cartridge filter have been designed using Finite Element Modelling for maximum strength at high pressures, ensuring years of life. Lid and locking ring have been ergonomically designed making the filter a breeze to use.

FEATURES

  • Built from highly durable UV resistant plastics.

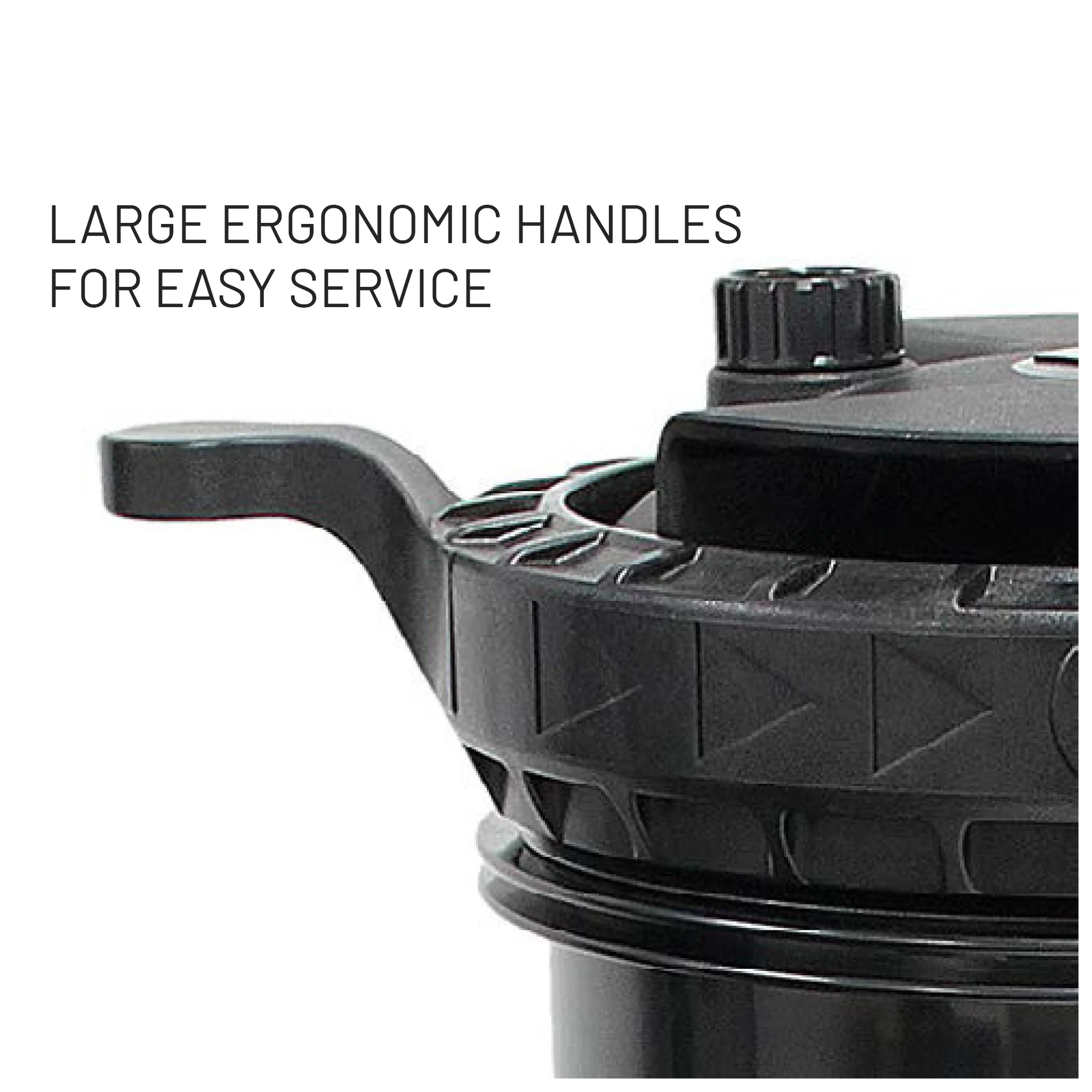

  • Lid and locking ring have large handles for easy grip.

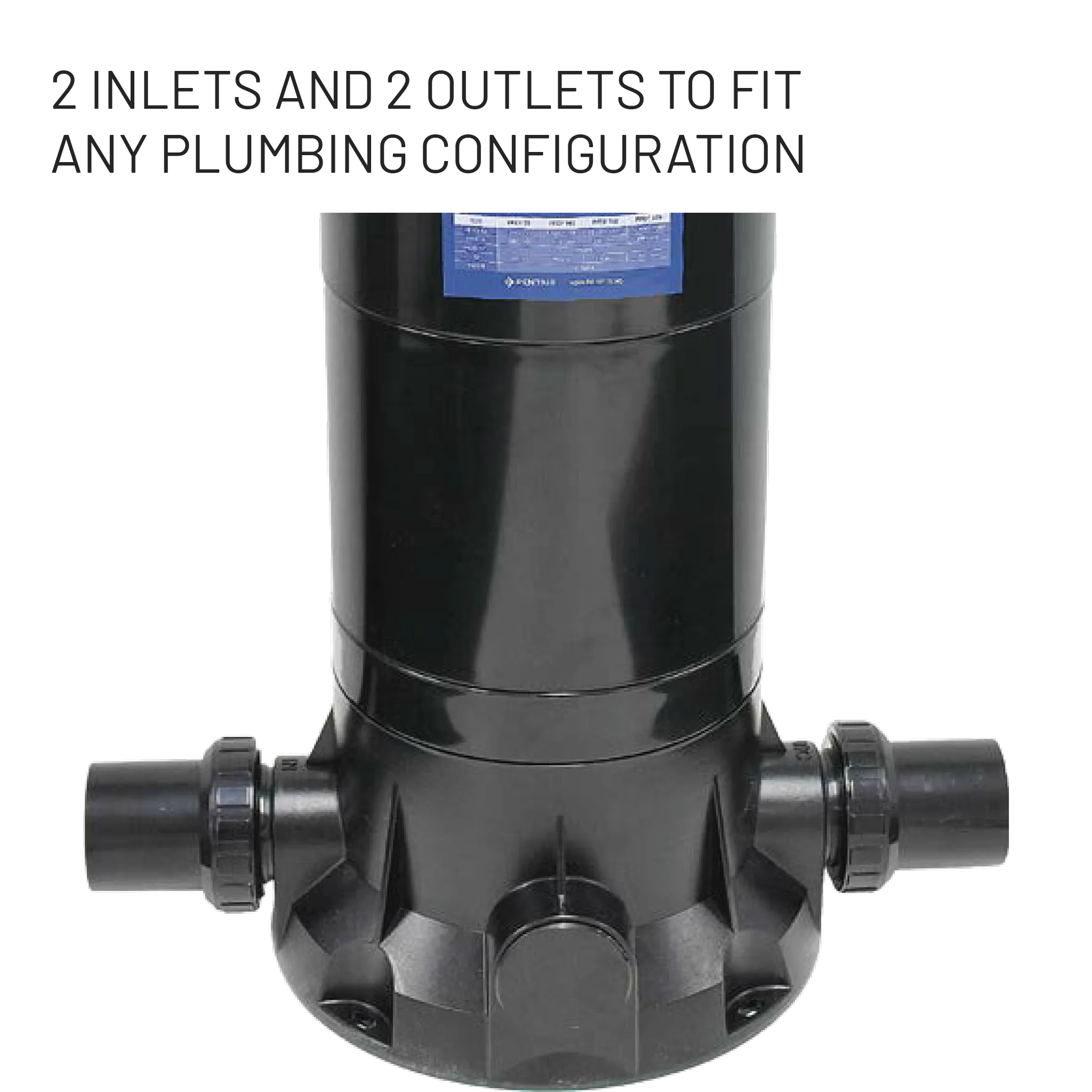

  • 2 inlet ports and 2 outlet ports, 90 degrees opposed allows fitting to any plumbing configuration.
  • 40mm and 50mm barrel unions included.

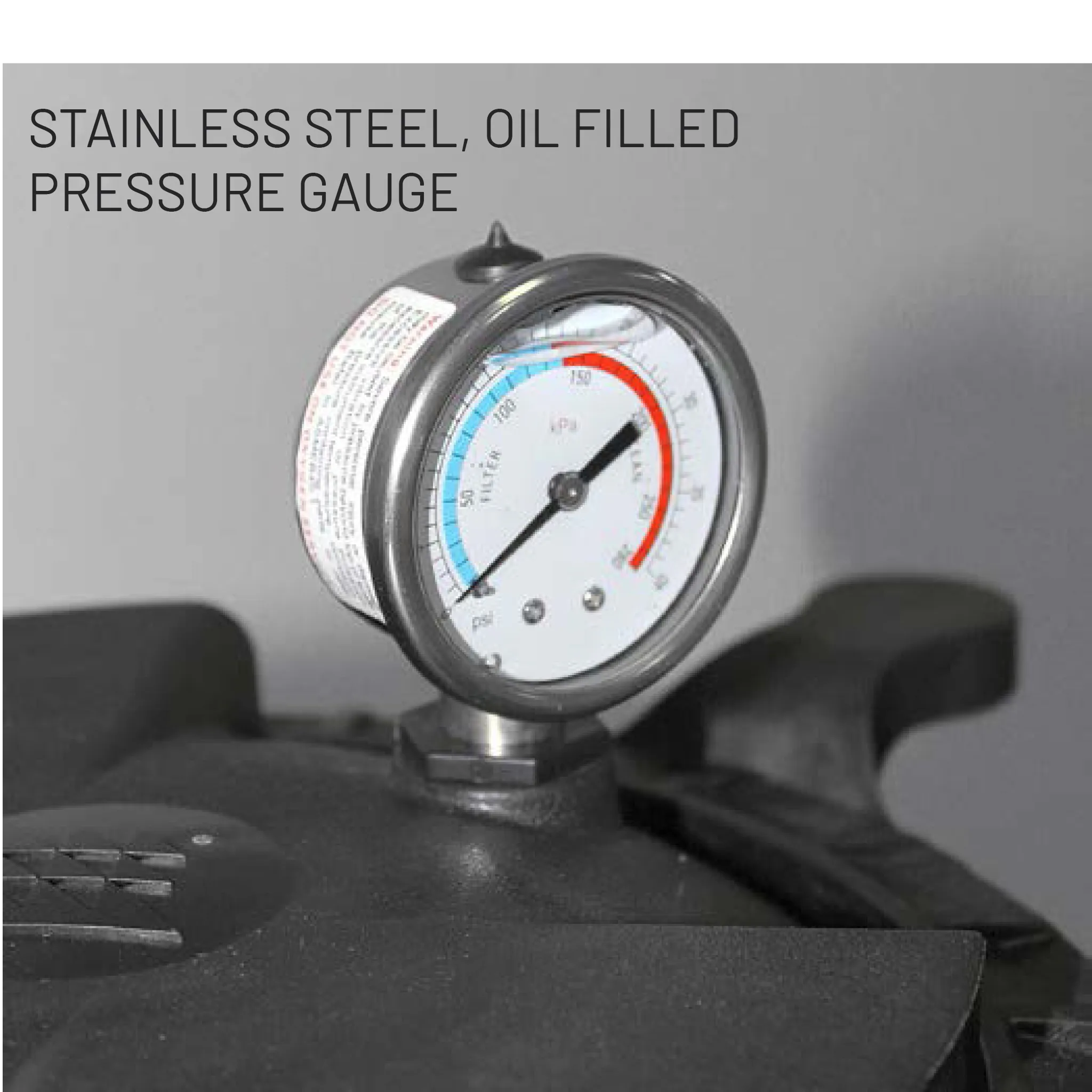

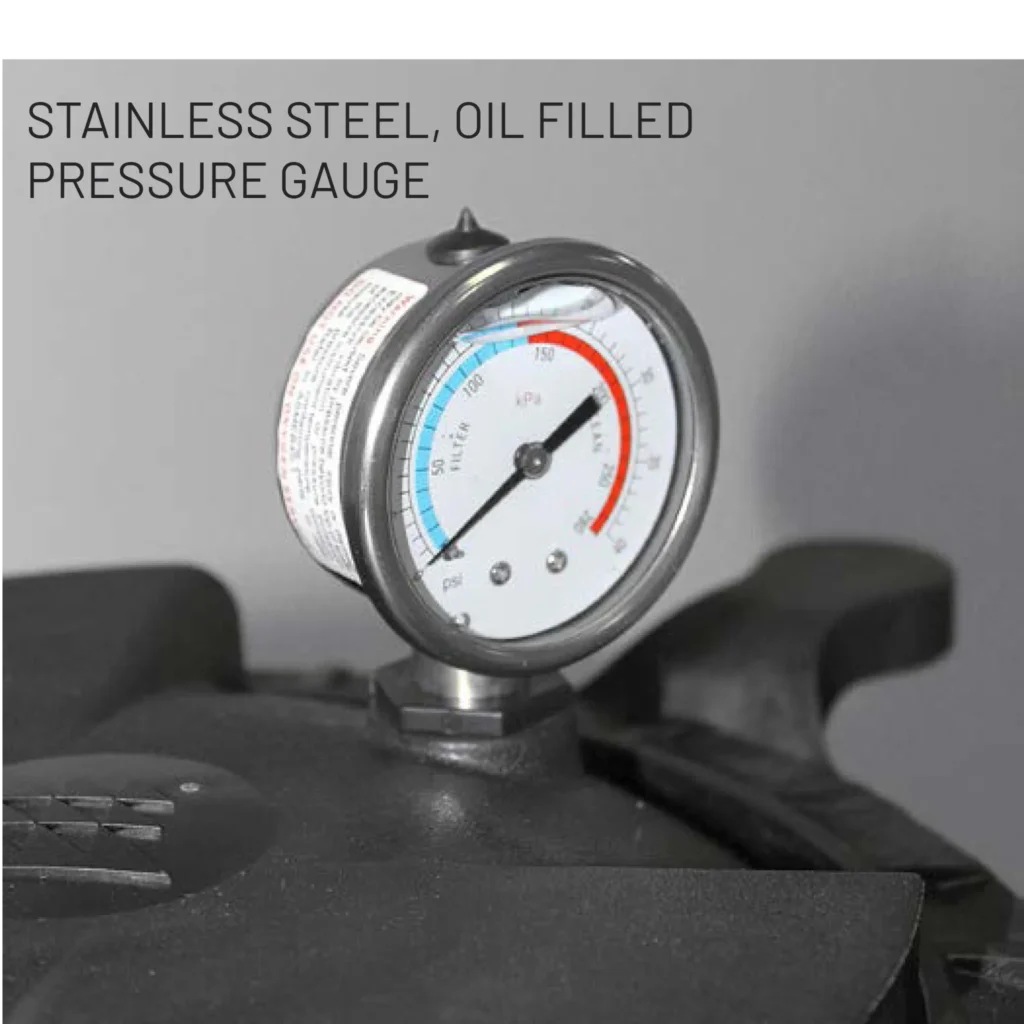

  • Stainless steel, oil-filled, pressure gauge.
  • Internal bypass valve prevents exceedingly high pressures.
  • 5-year tank warranty.

PRODUCT PERFORMANCE CHART

Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.

  • 1 Compare how each model performs under different conditions.
  • 2 Choose the right product for your desired needs.
  • 3 Ensure you're selecting a product that can handle your system's demands efficiently.

DOWNLOADS & RESOURCES

Brochures
Manuals
Replacement Parts
Other

REPLACEMENT CARTRIDGES FOR FREEFLO FILTERS

800750 - Replacement Cartridge FFCF 75 sq ft
800760 - Replacement Cartridge FFCF 100 sq ft
800761 - Replacement Cartridge FFCF 150 sq ft
800762 - Replacement Cartridge FFCF 200 sq ft

FreeFlo Cartridge Filter – Performance Table

FreeFlo Cartridge Filter FFCF-075 FFCF-100 FFCF-150 FFCF-200
Filter Area (ft²/m²) 75 / 7100 / 9.3150 / 13.9200 / 18.6
Max. Flow (RPM) 280380550680
Turnover Capacity (litres)
8 Hours
10 Hours
12 Hours
FFCF-075
Filter Area
75 / 7
Max. Flow (RPM)
280
Turnover Capacity (litres)
8 Hours
10 Hours
12 Hours
FFCF-100
Filter Area
100 / 9.3
Max. Flow (RPM)
380
Turnover Capacity (litres)
8 Hours
10 Hours
12 Hours
FFCF-150
Filter Area
150 / 13.9
Max. Flow (RPM)
550
Turnover Capacity (litres)
8 Hours
10 Hours
12 Hours
FFCF-200
Filter Area
200 / 18.6
Max. Flow (RPM)
680
Turnover Capacity (litres)
8 Hours
10 Hours
12 Hours
