Pentair

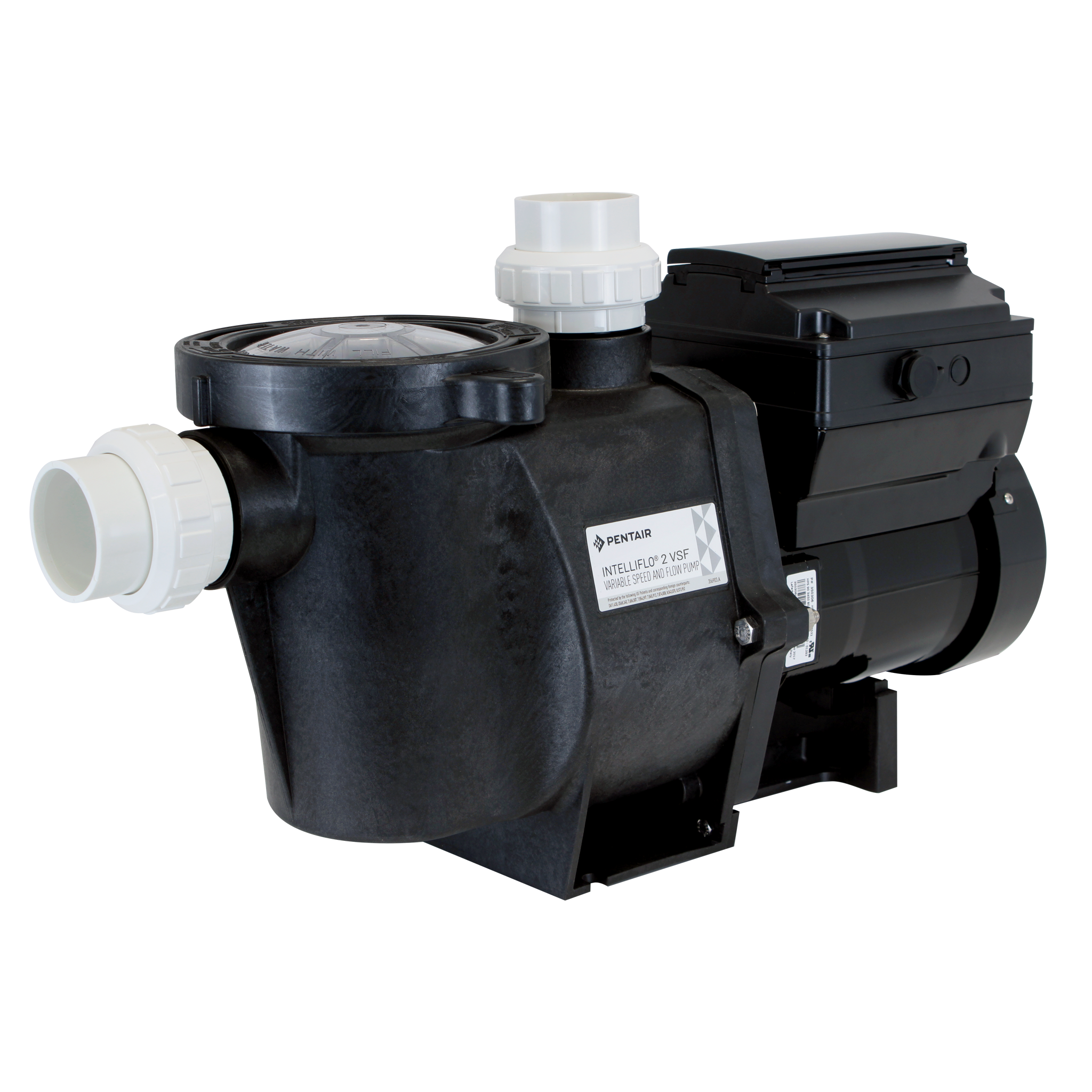

IntelliFlo® 2 VSF Pump
THE ULTIMATE PERFORMANCE & EFFICIENCY PUMP COMBINATION FOR LARGE & FEATURE RICH POOLS.
The world’s first variable speed and flow pump that delivers the highest available efficiency and peak performance.
The IntelliFlo® 2 VSF pump is the first to adjust to changes in flow conditions to maintain its pre-programmed flow rate to run optimally throughout the entire filtration cycle. It’s like having cruise control for your pump.
Since the IntelliFlo® 2 VSF pump is ultra energy efficient, you can experience increased energy savings, up to 90%, when compared to conventional single speed pumps.
FEATURES
- Ability to program exact pump speeds or flows for specific operations – filtering, heating, cleaning, spa jets, water features and more. Reduces energy costs up to 90%.
- Eight programmable speed or flow settings.
- Can precisely maintain system flow requirements and simultaneously run pump speed demand applications.
- Easy to use rotatable keypad with optional wall mount.
- Built in Time-Clock - With battery back-up, allows IntelliFlo® 2 VSF to be used as standalone pump.
- Can precisely maintain system flow requirements and simultaneously run pump speed demand applications.
- 3HP Capacity - Incredibly efficient at low speeds/flows but with capacity to run the most demanding of pool applications.
- Connects seamlessly to Pentair automation systems.

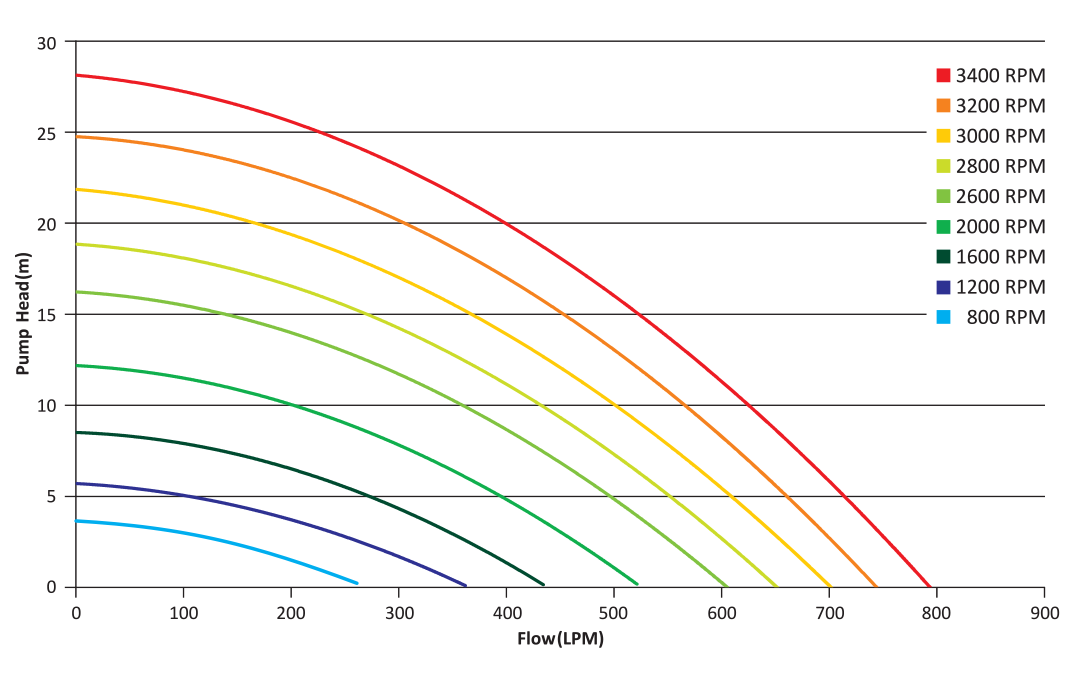

PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
There is no other information to show at the moment.
IntelliFlo® 2 VSF Pump Performance Table
| IntelliFlo® 2 VSF Pump | IntelliFlo 2 VSF |
|---|---|
| Product Number | 011056-AU |
| Setting | HIGH |
| RPM | 3,450 |
| Voltage (VAC) | 230-240 |
| Full Load (A) | 9.6 |
| Power Input (P1, W) | 3200 |
| Power Output (P2, W) | 2200 |
| Nominal Power (hp) | 2 |
| Locked Rotor Current (A) | Electronic Protection |
| Capacitor (uF) | N/A |
| DBA | 69 |
| Suction (mm) | 50 |
| Return (mm) | 50 |
IntelliFlo 2 VSF – HIGH
Product Number
011056-AU
Setting
HIGH
RPM
3,450
Voltage (VAC)
230-240
Full Load (A)
9.6
Power Input (P1, W)
3200
Power Output (P2, W)
2200
Nominal Power (hp)
2
Locked Rotor Current (A)
Electronic Protection
Capacitor (uF)
N/A
DBA
69
Suction (mm)
50
Return (mm)
50
