Onga
LeisureTime Pump
GREAT VALUE PUMP IDEAL FOR SMALL TO MEDIUM POOLS
The range of LeisureTime pool pumps have been purposefully designed to provide maximum performance and corrosion resistance at a realistic cost.
Available in 3 models: 550, 750 and 1100 to meet your specifications.
- LeisureTime 550 – Pools and spas up to 40,000 ltrs
- LeisureTime 750 – Pools and spas up to 90,000 ltrs
- LeisureTime 1100 – Pools and spas up to 110,000 ltrs
FEATURES
- Pools and spas up to 40,000 ltrs.
- Self-aligning barrel unions.
- High strength composite pump casing.
- Efficient, heavy-duty motor.
- Elevated mount keeps ground moisture away from pump.

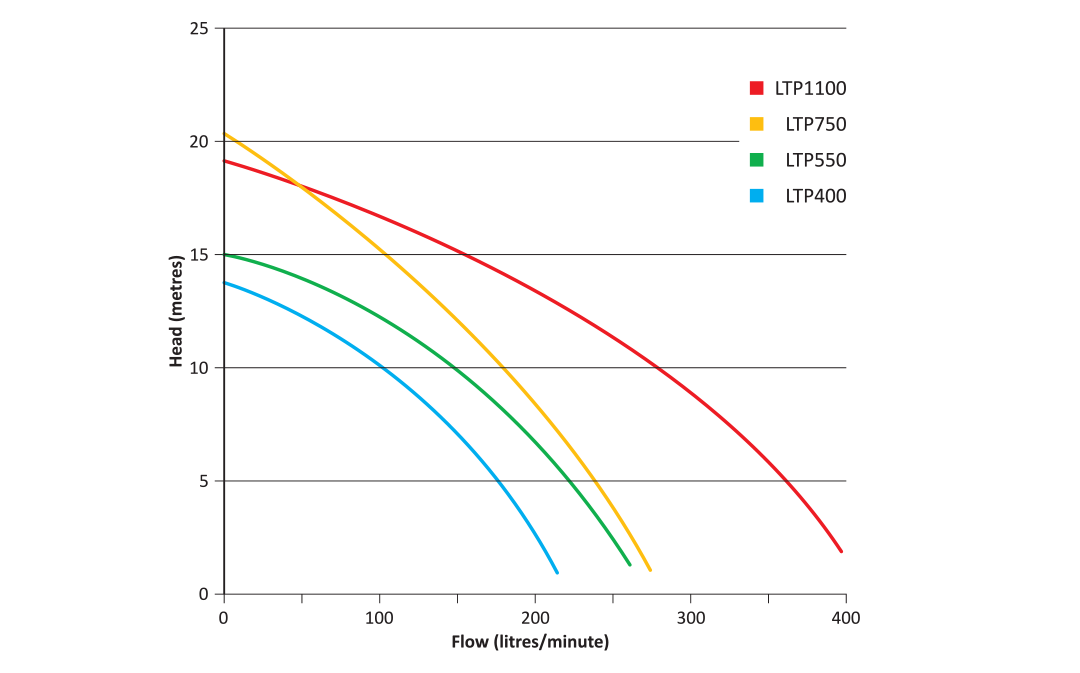

PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
There are no Replacement-parts available at the moment.
There is no other information to show at the moment.
LeisureTime Pump Performance Table
| LeisureTime Pump | LeisureTime 550 | LeisureTime 750 | LeisureTime 1100 |
|---|---|---|---|
| Product Number | LTP550 | LTP750 | LTP1100 |
| Voltage (VAC) | 230-240 | 230-240 | 230-240 |
| Full Load (A) | 3.5 | 4.3 | 5.4 |
| Power Input (P1, W) | 785 | 930 | 1200 |
| Power Output (P2, W) | 550 | 700 | 900 |
| Nominal Power (hp) | 0.75 | 1 | 1.25 |
| Locked Rotor Current (A) | 17 | 17 | 21 |
| Capacitor (uF) | 20 | 20 | 25 |
| dBA | 61 | - | 62 |
| Suction (mm) | 40 | 40 | 40 |
| Return (mm) | 40 | 40 | 40 |
LeisureTime 550
Product Number
LTP550
Voltage (VAC)
230-240
Full Load (A)
3.5
Power Input (P1, W)
785
Power Output (P2, W)
550
Nominal Power (hp)
0.75
Locked Rotor Current (A)
17
Capacitor (uF)
20
dBA
61
Suction (mm)
40
Return (mm)
40
LeisureTime 750
Product Number
LTP750
Voltage (VAC)
230-240
Full Load (A)
4.3
Power Input (P1, W)
930
Power Output (P2, W)
700
Nominal Power (hp)
1
Locked Rotor Current (A)
17
Capacitor (uF)
20
dBA
-
Suction (mm)
40
Return (mm)
40
LeisureTime 1100
Product Number
LTP1100
Voltage (VAC)
230-240
Full Load (A)
5.4
Power Input (P1, W)
1200
Power Output (P2, W)
900
Nominal Power (hp)
1.25
Locked Rotor Current (A)
21
Capacitor (uF)
25
dBA
62
Suction (mm)
40
Return (mm)
40
