Sta-Rite
Max-E Pro Pump
STRONG PERFORMER. QUIET LEADER.
Max-E Pro – High efficiency, low maintenance and maximum performance—all the features demanded by today’s pool professionals. The Max-E-Pro pump has our new Quick-Lock™ trap cover ring and the 50mm / 2 in. ports incorporate internal and external threads.
Available in single and three phase models, with ratings from 1 to 3 HP. Built with quality construction using a durable one-piece pump housing constructed of Dura-Glas™ — Pentair’s industry leading glass-reinforced composite resin. Fast cleaning with a Quick-Lock trap cover ring permits fast access to strainer basket. Large “see-thru” lid makes it simple to check for debris. A strong, sturdy, specially designed base dampens sound and vibration, making the Max-E-Pro pump one of the quietest pumps in its class.
FEATURES
- Typical Installation – Inground pools, pool/spa combinations, inground spas, fountains and water features.
- Self-priming – Suction lift up to 4.5m above water level.
- Easy-to-Install – 2"/50mm ports include external and internal threads for more plumbing options.
- Superior Hydraulic Design – Moves larger volumes of water, resulting in lower operating costs.
- Impeller Manufactured with PPO Resin – Withstands the toughest water environments.
- Fluoroelastomer Rubber Shaft Seal – Longer-lasting seal stands up to the harshest environments.
- Self-lubricating Lid O-ring – Does not require lubricant.
- 3 years limited warranty - terms & conditions apply.

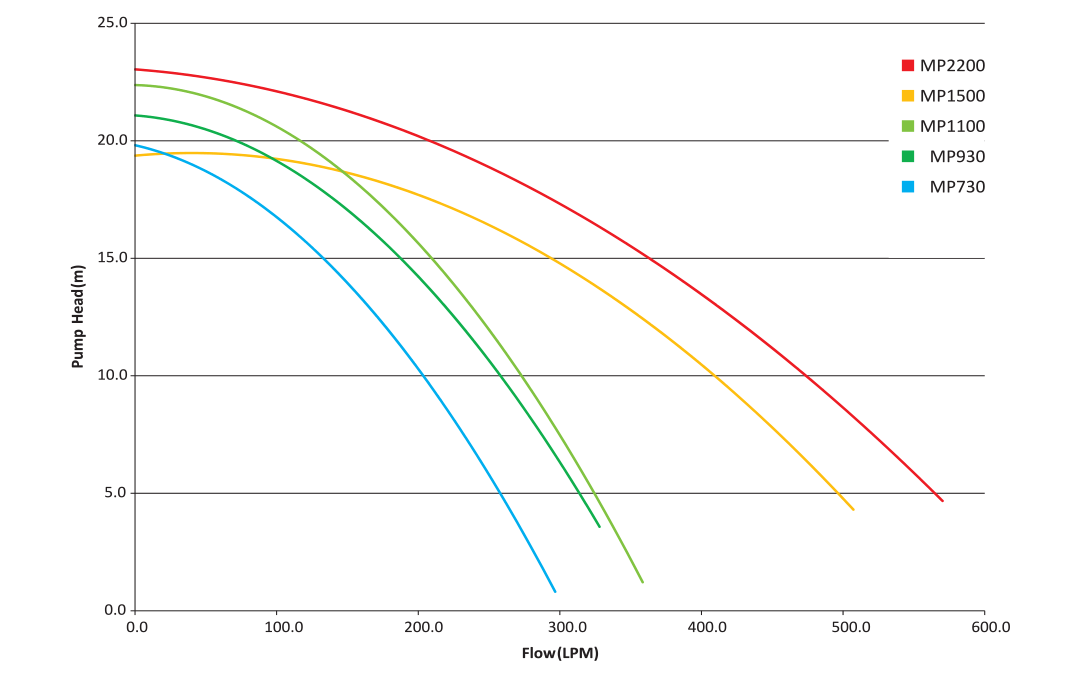

PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
Max-E Pro Pump Performance Table
| Max-E Pro Pump | Max-E-Pro 730 | Max-E-Pro1100 | Max-E-Pro 1500 | Max-E-Pro 2200 | Max-E-Pro 1500 3ph | Max-E-Pro 2200 3ph |
|---|---|---|---|---|---|---|
| Product Number | MP730100 | MP1100100 | MP1500100 | MP2201100 | MP1508100 | MP2208100 |
| Voltage (VAC) | 230-240 | 230-240 | 230-240 | 230-240 (equipped with 15A lead) | 400-415 | 400-415 |
| Full Load (A) | 4.1 | 6.0 | 7.9 | 10.7 | 4.2 | 4.4 |
| Power Input (P1, W) | 925 | 1330 | 1800 | 2435 | 2100 | 2420 |
| Power Output (P2, W) | 690 | 1000 | 1350 | 1950 | 1690 | 1980 |
| Nominal Power (hp) | 1 | 1.5 | 2 | 3 | 2 | 3 |
| Locked Rotor Current (A) | 14 | 22 | 28 | 42 | 23 | 38 |
| Capacitor (uF) | 30 | 25 | 35 | 2x25 | - | - |
| dBA | ||||||
| Suction (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Return (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
