Onga

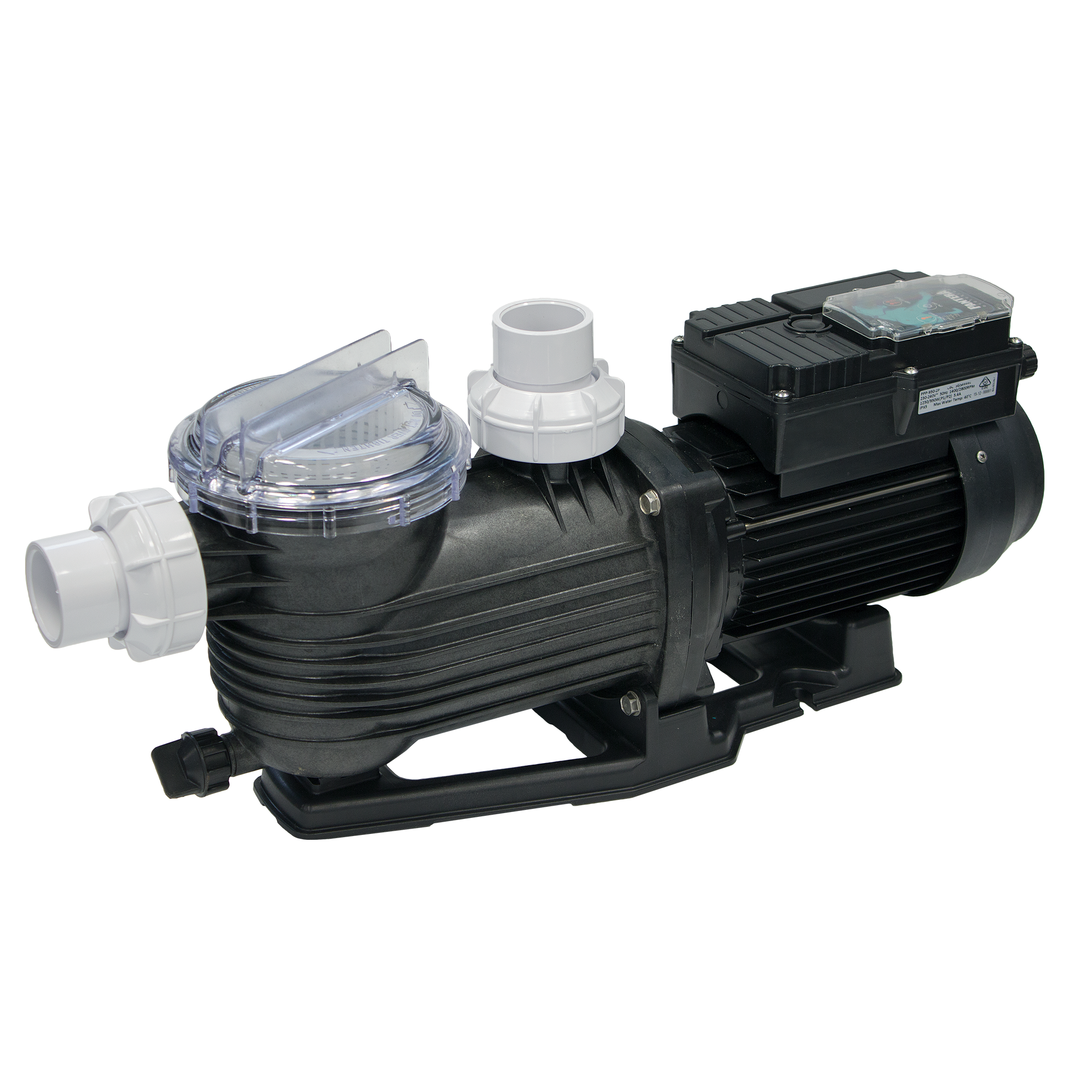

Pantera Evolution Pump
HIGH EFFICIENCY 2-SPEED PUMP
The Pantera® Evolution pool pump is the ideal pump for new or existing pools. Utilising efficient hydraulic design and the latest technology in electronic control two speed motors, the Pantera Evo has the perfect combination of efficiency and performance.
The Pantera Evo delivers energy savings for a realistic cost outlay and the power when you need it.
FEATURES
- Pools and spas up to 50,000 ltrs.
- Dual speed pump, with 2 fixed speeds, allows you to efficiently filter your pool, saving energy with the low speed mode and delivering extra power with the high speed mode for backwashing and vacuuming.
- Innovative hydraulic isolator separates priming water from pumping water, for faster priming and greater efficiency.
- New sound dampening elevated motor base.
- Swivel Barrel Unions – Pump fits to existing plumbing with ease with its quick connecting swiveling barrel unions.
- 2 pole / 4 pole induction motor delivers high efficiency and low noise levels.
- Drop in replacement for all LeisureTime and PPP pool pumps.
- 3 years limited warranty - terms & conditions apply.
PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
There is no other information to show at the moment.
Pantera Evolution Pump Performance Table
| Pantera Evolution Pump | Pantera Evolution – Low Speed | Pantera Evolution – High Speed |
|---|---|---|
| Product Number | PPP-950-2SP | PPP-950-2SP |
| Setting | LOW | HIGH |
| RPM | 1,400 | 2,850 |
| Voltage (VAC) | 230-240 | 230-240 |
| Full Load (A) | 1.0 | 5.2 |
| Power Input (P1, W) | 223 | 1180 |
| Power Output (P2, W) | 118 | 950 |
| Nominal Power (hp) | ||
| Locked Rotor Current (A) | ||
| Capacitor (uF) | ||
| DBA | 49 | 61 |
| Suction (mm) | 40 | 40 |
| Return (mm) | 40 | 40 |
Pantera Evolution – Low Speed – LOW
Product Number
PPP-950-2SP
Setting
LOW
RPM
1,400
Voltage (VAC)
230-240
Full Load (A)
1.0
Power Input (P1, W)
223
Power Output (P2, W)
118
Nominal Power (hp)
Locked Rotor Current (A)
Capacitor (uF)
DBA
49
Suction (mm)
40
Return (mm)
40
Pantera Evolution – High Speed – HIGH
Product Number
PPP-950-2SP
Setting
HIGH
RPM
2,850
Voltage (VAC)
230-240
Full Load (A)
5.2
Power Input (P1, W)
1180
Power Output (P2, W)
950
Nominal Power (hp)
Locked Rotor Current (A)
Capacitor (uF)
DBA
61
Suction (mm)
40
Return (mm)
40
