Onga

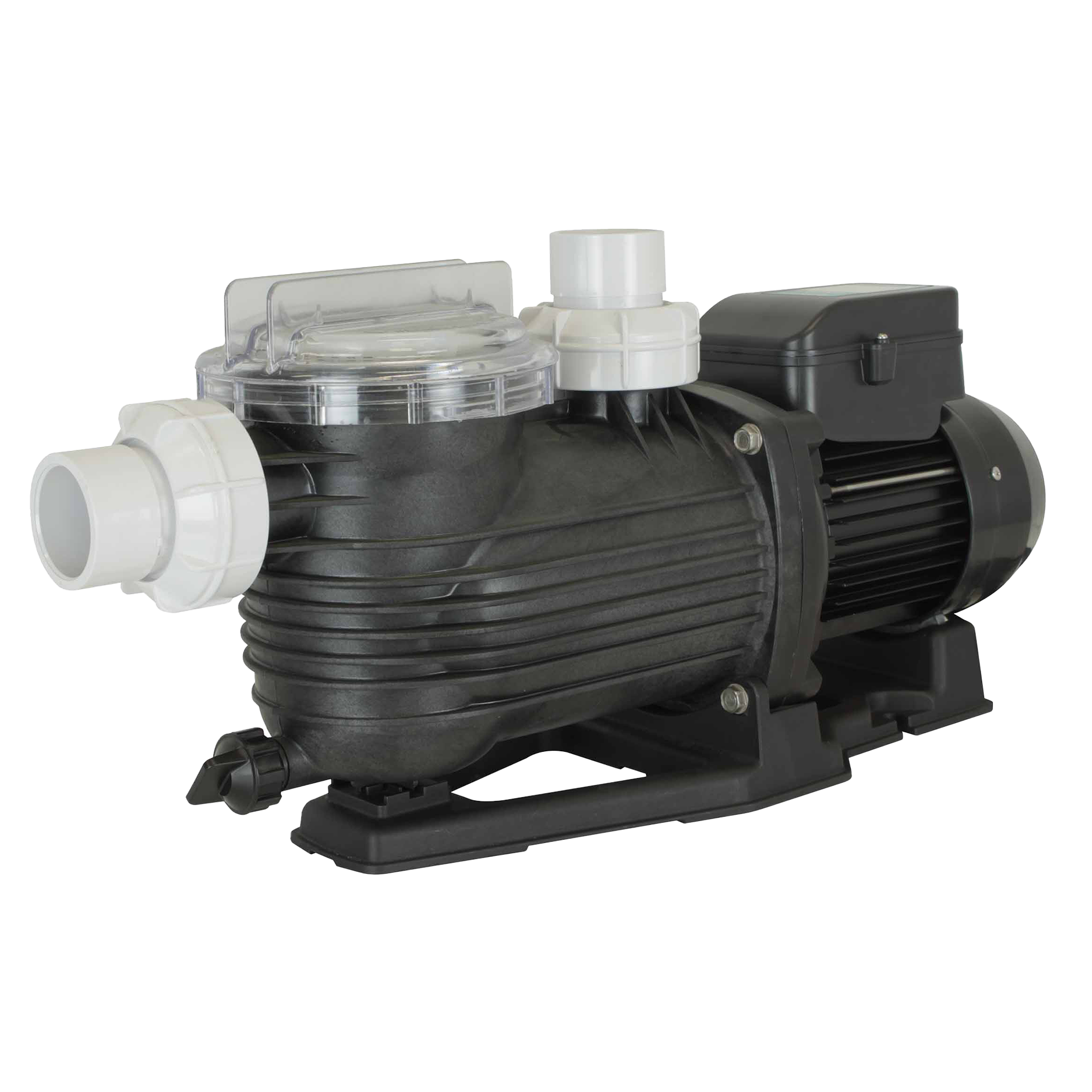

Pantera Pool Pump
HIGH PERFORMANCE PUMPS WITH 5 LEVELS OF CORROSION RESISTANCE
Pantera pumps are high performance pumps with 5 levels of corrosion resistance. With over 30 years experience selling into the pool industry, we know the more protection you give the motor, the better off you are and that’s why we build five levels of motor protection into the Pantera range of pool pumps.
FEATURES
- Stainless steel motor shaft - A 5/8" 316 Stainless Steelshaft extends the life of the pump.
- Shaft Sleeve - A nylon shaft sleeve incorporating aflinger, adds additional water ingress protection.
- Mechanical Seal - A heavy-duty 3/4" 316 Stainless Steelmechanical seal (on all models) provides extended lifeand longer intervals between servicing.
- Plastic Yoke and Lip-Seal - The wet end designintegrates a moulded end-shield cover and lip seal,protecting the motor from water damage.
- Self aligning barrel unions (40mm/50mm) included.
- 3 years limited warranty. Terms and conditions apply.

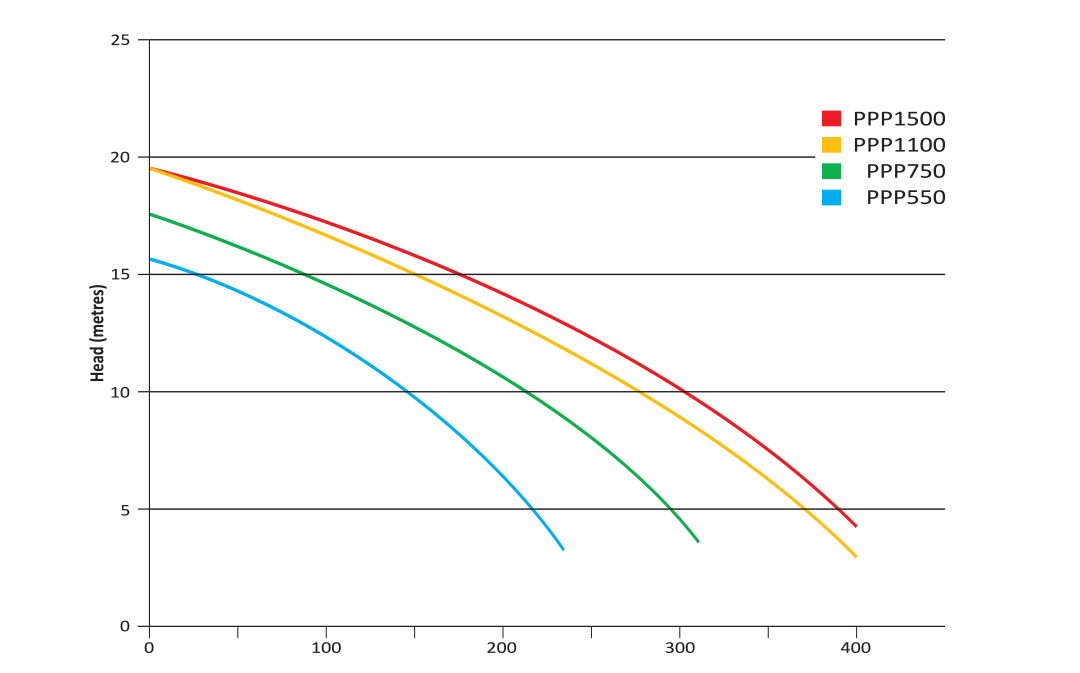

PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
Some additional information.
Pantera Pool Pump Performance Table
| Pantera Pool Pump | Pantera 550 | Pantera 750 | Pantera 1100 | Pantera 1500 |
|---|---|---|---|---|
| Product Number | PPP-550-1P | PPP-750-1P | PPP-1100-1P | PPP-1500-1P |
| Voltage (VAC) | 230-240 | 230-240 | 230-240 | 230-240 |
| Full Load (A) | 3.6 | 3.9 | 5 | 6.1 |
| Power Input (P1, W) | 825 | 920 | 1200 | 1360 |
| Power Output (P2, W) | 550 | 690 | 900 | 1020 |
| Nominal Power (hp) | 0.75 | 1 | 1.25 | 1.5 |
| Locked Rotor Current (A) | 17 | 17 | 21 | 21 |
| Capacitor (uF) | 20 | 20 | 25 | 25 |
| dBA | 57 | 59 | 65 | 63 |
| Suction (mm) | 40 | 40 | 40 | 40 |
| Return (mm) | 40 | 40 | 40 | 40 |
Pantera 550
Product Number
PPP-550-1P
Voltage (VAC)
230-240
Full Load (A)
3.6
Power Input (P1, W)
825
Power Output (P2, W)
550
Nominal Power (hp)
0.75
Locked Rotor Current (A)
17
Capacitor (uF)
20
dBA
57
Suction (mm)
40
Return (mm)
40
Pantera 750
Product Number
PPP-750-1P
Voltage (VAC)
230-240
Full Load (A)
3.9
Power Input (P1, W)
920
Power Output (P2, W)
690
Nominal Power (hp)
1
Locked Rotor Current (A)
17
Capacitor (uF)
20
dBA
59
Suction (mm)
40
Return (mm)
40
Pantera 1100
Product Number
PPP-1100-1P
Voltage (VAC)
230-240
Full Load (A)
5
Power Input (P1, W)
1200
Power Output (P2, W)
900
Nominal Power (hp)
1.25
Locked Rotor Current (A)
21
Capacitor (uF)
25
dBA
65
Suction (mm)
40
Return (mm)
40
Pantera 1500
Product Number
PPP-1500-1P
Voltage (VAC)
230-240
Full Load (A)
6.1
Power Input (P1, W)
1360
Power Output (P2, W)
1020
Nominal Power (hp)
1.5
Locked Rotor Current (A)
21
Capacitor (uF)
25
dBA
63
Suction (mm)
40
Return (mm)
40
