Onga

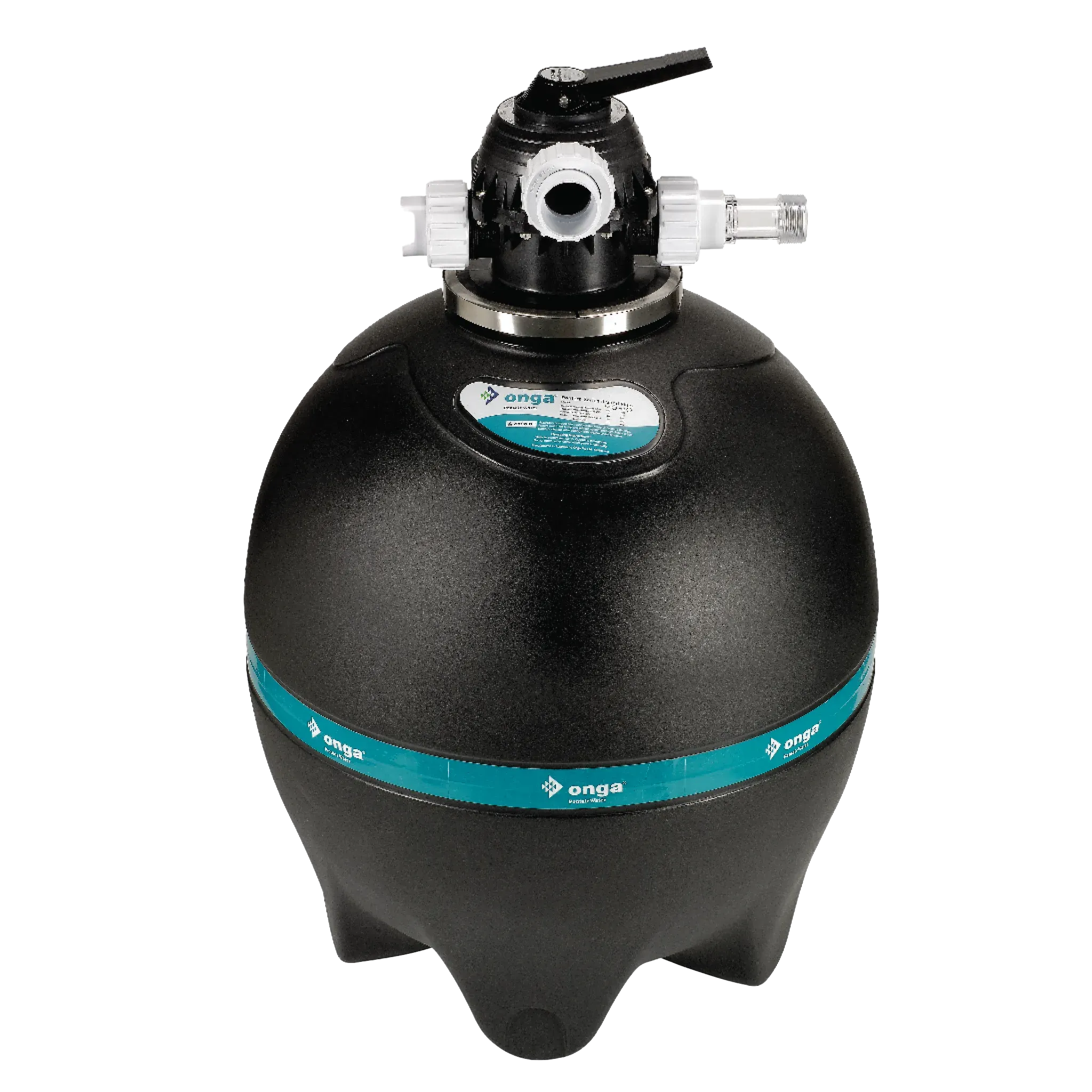

Pantera Sand Filter
MANUFACTURED IN AUSTRALIA FOR AUSTRALIAN CONDITIONS, THE PANTERA IS BUILT TOUGH
Our process creates a one-piece, roto-moulded tank with superior strength and durability. Sizes from 21″ up to 33″ to meet any pool size. Pantera® filters are equipped with a six-position, clamp style, top-mounted multiport valve.
FEATURES
- Under-drain laterals - Designed to give you maximum performance, the water filters down through the entire bed of sand to give superior filtration for sparkling clean water.
- Stainless steel filter clamp.
- Large in-line sight glass.
- 6 position multi-port valve with durable seals and gaskets.
- Includes MPV and barrel unions.
- 10 year pro-rata warranty - terms & conditions apply.
PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
ACCESSORIES FOR PANTERA SAND FILTERS
SR14965-A003 - 1.5" MPV for Pantera 21" & 29" Filters
SR14971-TM-22-L - 2.0" MPV for Pantera 29" & 33" Filters
Pantera Sand Filter – Performance Table
| Pantera Sand Filter | P221100 (21" w/ 40mm MPV) | P225100 (25" w/ 40mm MPV) | P229200 (29" w/ 50mm MPV) | P233200 (33" w/ 50mm MPV) |
|---|---|---|---|---|
| Filter Area (ft²/m²) | 2.2 / 0.2 | 3.2 / 0.3 | 4.3 / 0.4 | 5.6 / 0.5 |
| Max. Flow (LPM) | 165 | 235 | 320 | 415 |
| Min. Backwash (LPM) | 125 | 175 | 240 | 310 |
P221100 (21" w/ 40mm MPV)
Filter Area
2.2 / 0.2
Max. Flow (LPM)
165
Min. Backwash (LPM)
125
P225100 (25" w/ 40mm MPV)
Filter Area
3.2 / 0.3
Max. Flow (LPM)
235
Min. Backwash (LPM)
175
P229200 (29" w/ 50mm MPV)
Filter Area
4.3 / 0.4
Max. Flow (LPM)
320
Min. Backwash (LPM)
240
P233200 (33" w/ 50mm MPV)
Filter Area
5.6 / 0.5
Max. Flow (LPM)
415
Min. Backwash (LPM)
310
