Pentair

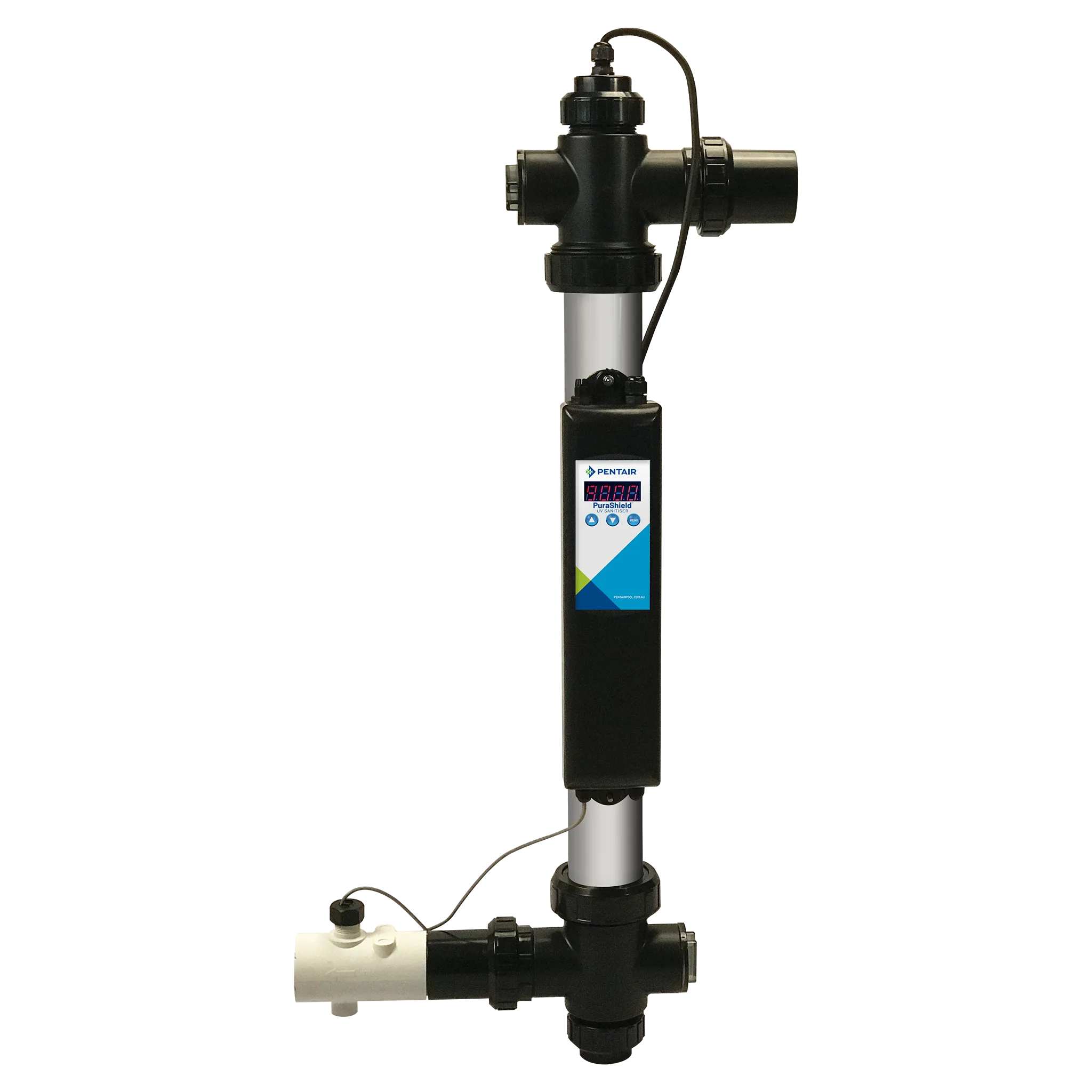

PuraShield UV
THE NEXT LEVEL OF SWIMMING POOL PROTECTION
PuraShield® UV harnesses the power of ultraviolet light to assist with the elimination of organic matter like bacteria and viruses that lead to the reduction in chloramines and the amount of chlorine needed to maintain clean pool water.
PuraShield® provides instant protection from many harmful bacteria and chlorine resistant pathogens providing cleaner and safer pool water everyone can enjoy.
Part Numbers:
- PSUV-75 (75WATT)
- PSUV-130 (130WATT)
FEATURES
- Available in two models (PSUV-75 and PSUV-130).

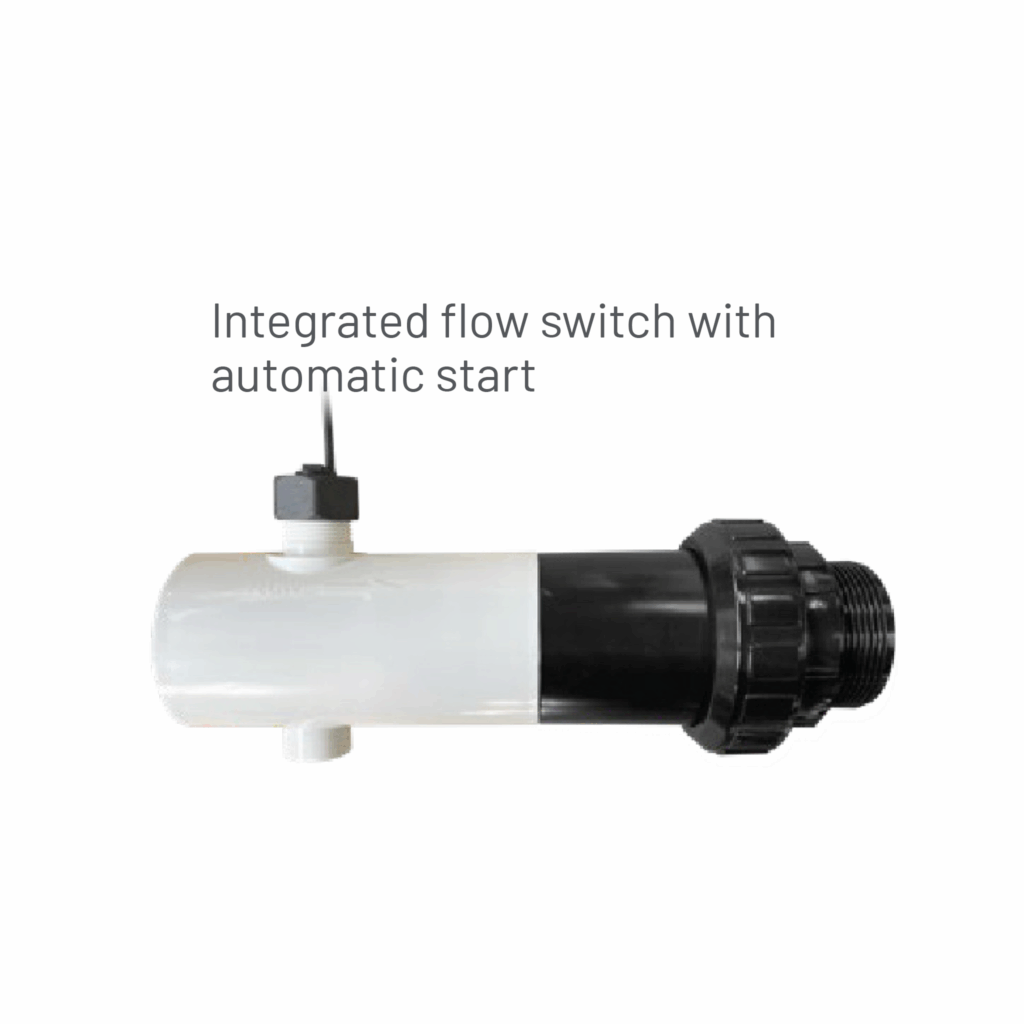

- Integrated flow switch with automatic start.

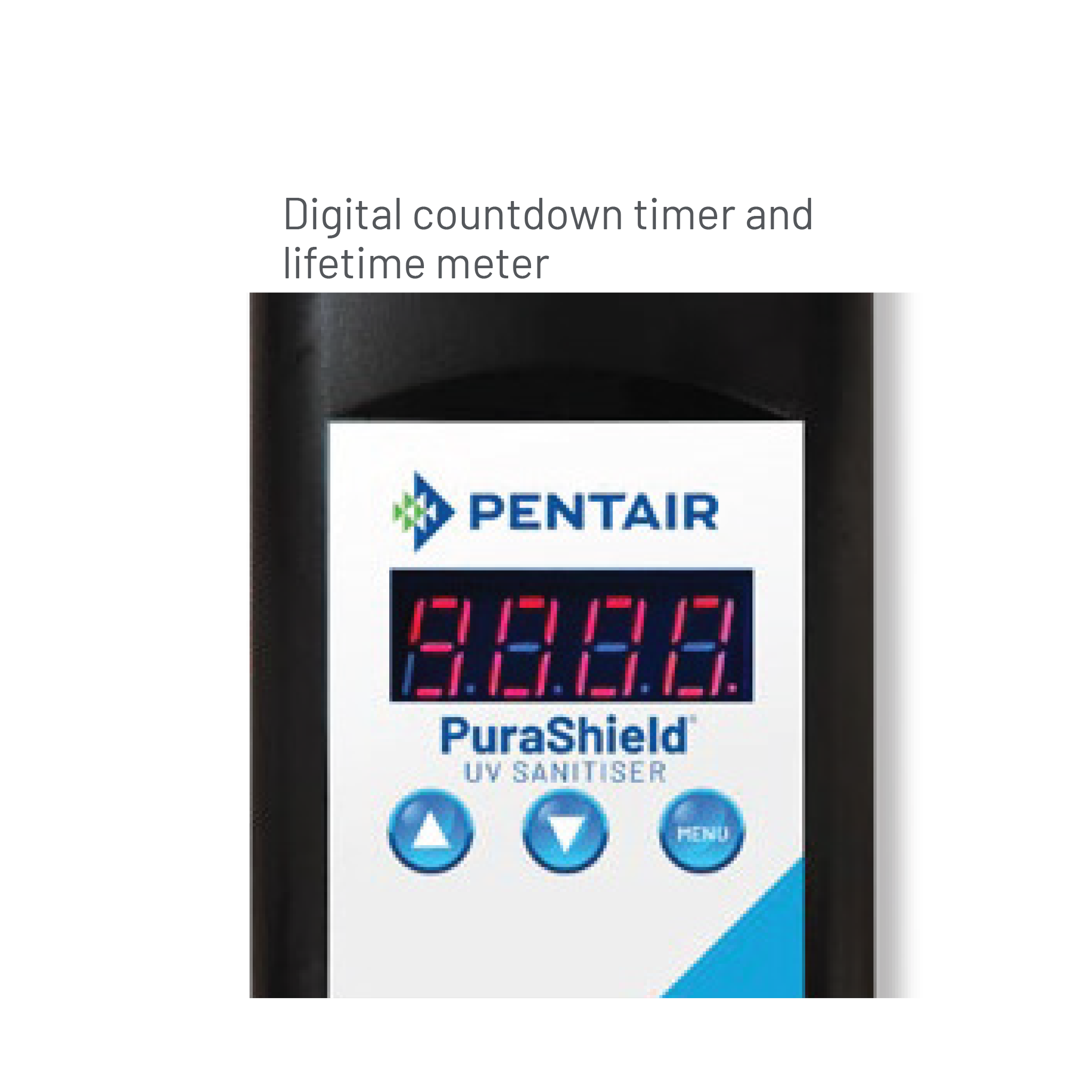

- Digital countdown timer and lifetime meter.

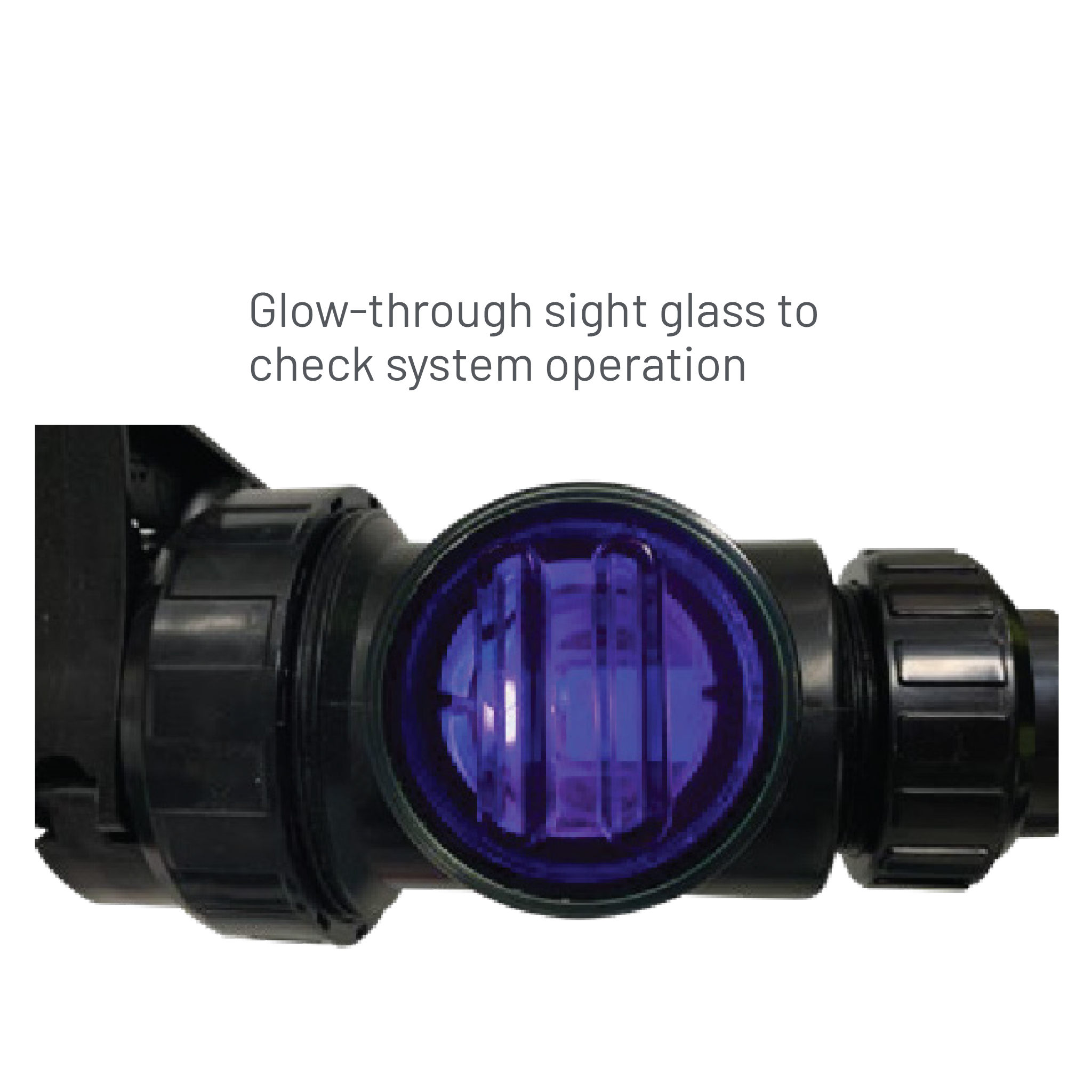

- Glow-through sight glass to check system operation.
- Long-life UV-C lamps.
- Mirror-polished stainless steel (AISI-316L).
- UV chamber increases efficiency up to 35%
- 2 year warranty.
DOWNLOADS & RESOURCES
There are no Manuals available at the moment.
There are no Replacement-parts available at the moment.
There is no other information to show at the moment.
PuraShield UV Performance Table
| PuraShield UV | PuraShield UV 75 | PuraShield UV 130 | PuraShield UV +Ozone |
|---|---|---|---|
| Product Number | PSUV-75 | PSUV-1 | PSUV-87-03 |
| Power Supply (V/Hz) | 220-240V, 50/60Hz | 220-240V, 50/60Hz | 220-240V, 50/60Hz |
| Chlorine Production | no chlorine production | no chlorine production | Maximum Ozone Production 0.6g/hr |
| Maximum Power | 75W | 130W | 87W |
| Cell Current | N/A | N/A | N/A |
| Protection | IP54 | IP54 | IP54 |
| Max Temperature | 40 C | 40 C | 40 C |
| Plumbing Capacity | 40mm / 50mm. Max Working Pressure 300kPa | 40mm / 50mm. Max Working Pressure 300kPa | 40mm / 50mm. Max Working Pressure 300kPa |
PuraShield UV 75
Product Number
PSUV-75
Power Supply (V/Hz)
220-240V, 50/60Hz
Chlorine Production
no chlorine production
Maximum Power
75W
Cell Current
N/A
Protection
IP54
Max Temperature
40 C
Plumbing Capacity
40mm / 50mm. Max Working Pressure 300kPa
PuraShield UV 130
Product Number
PSUV-1
Power Supply (V/Hz)
220-240V, 50/60Hz
Chlorine Production
no chlorine production
Maximum Power
130W
Cell Current
N/A
Protection
IP54
Max Temperature
40 C
Plumbing Capacity
40mm / 50mm. Max Working Pressure 300kPa
PuraShield UV +Ozone
Product Number
PSUV-87-03
Power Supply (V/Hz)
220-240V, 50/60Hz
Chlorine Production
Maximum Ozone Production 0.6g/hr
Maximum Power
87W
Cell Current
N/A
Protection
IP54
Max Temperature
40 C
Plumbing Capacity
40mm / 50mm. Max Working Pressure 300kPa
