Pentair
PuraShield UV +Ozone
THE NEXT LEVEL OF SWIMMING POOL PROTECTION WITH OZONE

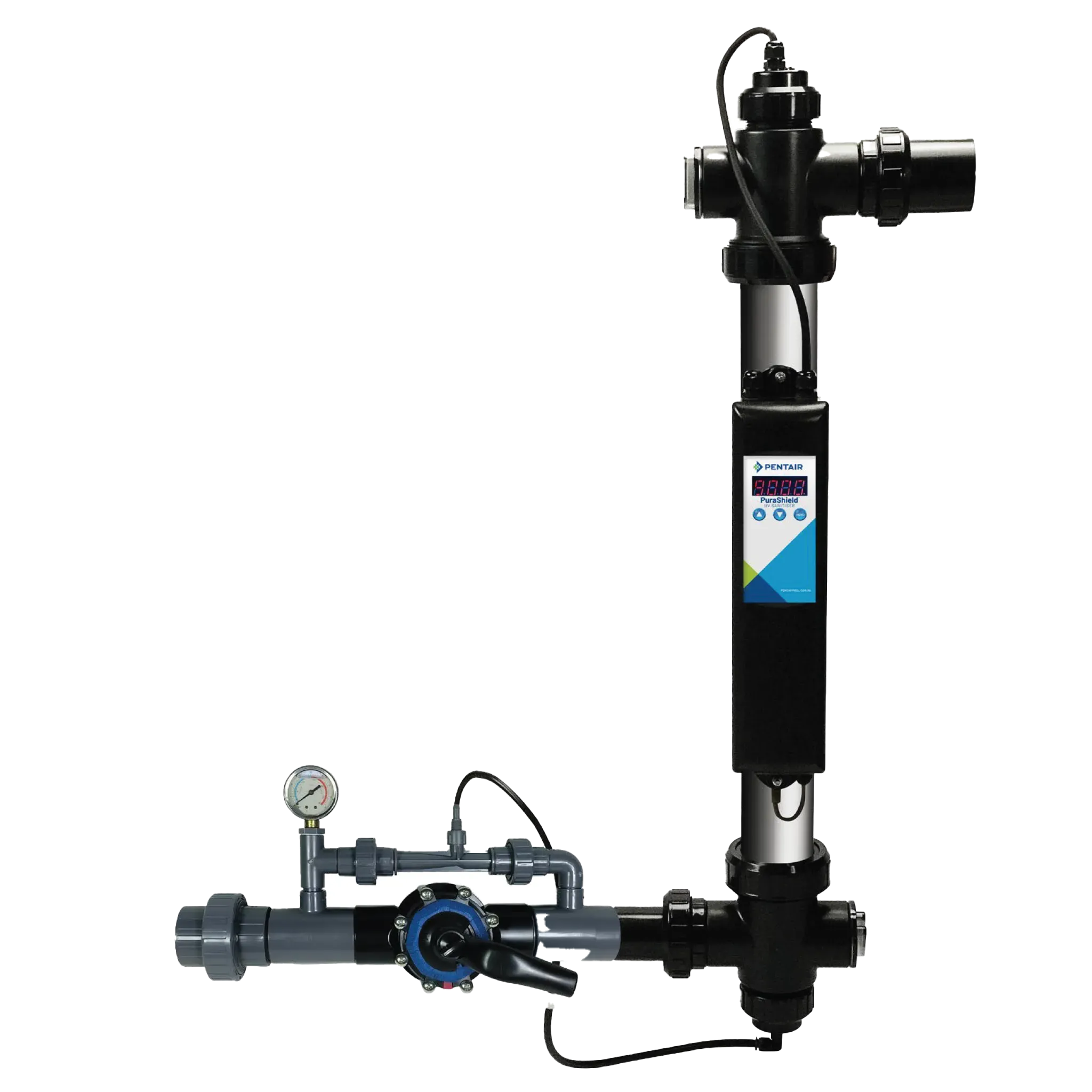

The PuraShield® UV +Ozone system takes sanitation to the next level with the inclusion of an ozone unit. Combining ozone’s proven oxidation and sanitising power, this can produce the clearest pool water possible. With the power of UV light and ozone it is possible to neutralise 99.9% of bacteria that may help reduce chlorine usage by up to 50% for less hassle and reduced odours.
Part Number: PSUV-87-03
FEATURES
- UV-C and Ozone combination system creates powerful oxidation formula.
- 2 year warranty.
- Dual output lamp produces 254nm for germicidal treatment and 185nm for ozone production.

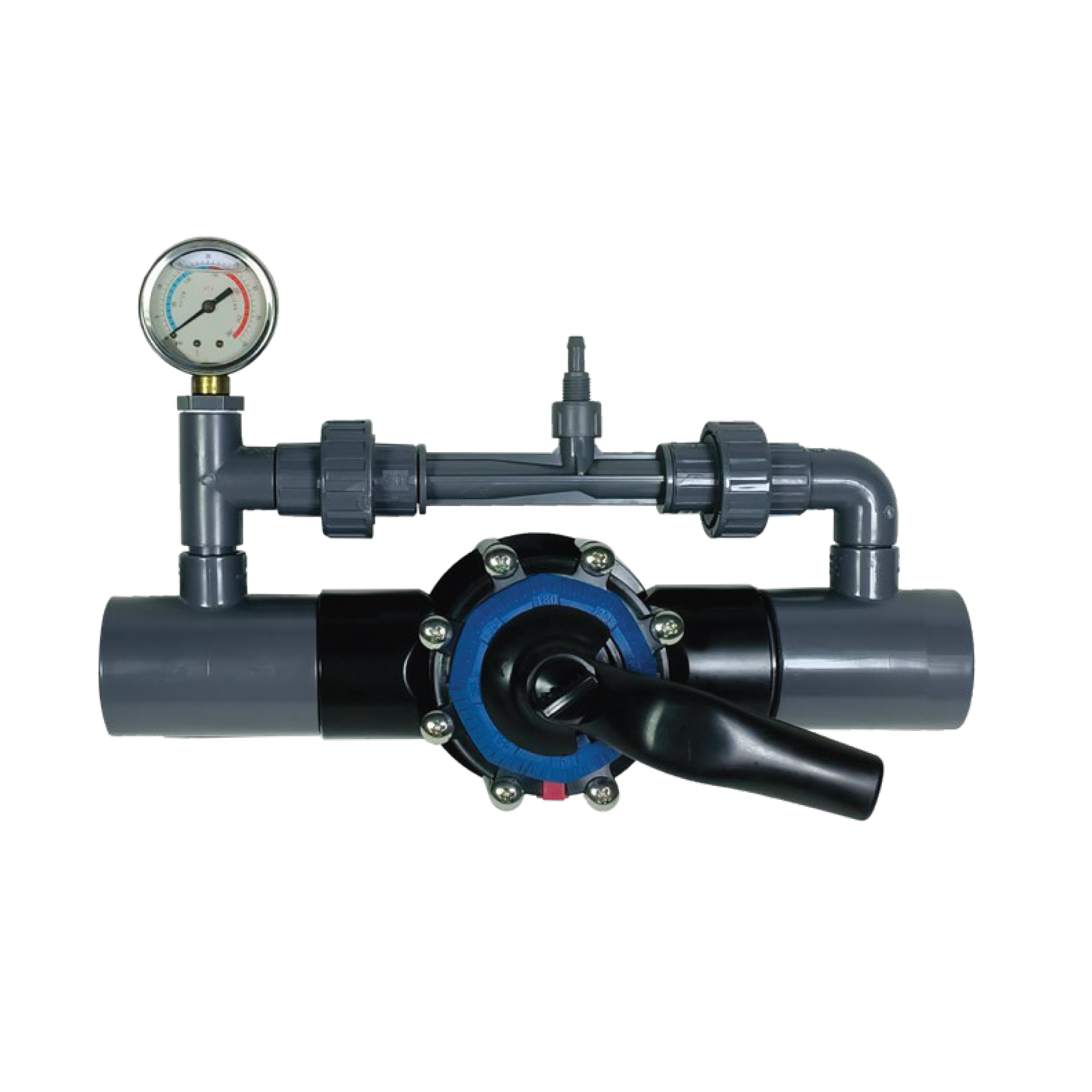

- Adjustable by-pass venturi valve to regulate ozone addition.
- Check valve included for one way flow of ozone.
- Integrated flow switch with automatic start.
- Digital countdown timer and lifetime meter.
- Glow-through sight glass to check system operation.
- Long-life UV-C lamps.
- Mirror-polished stainless steel (AISI-316L) UV chamber increases efficiency up to 35%
DOWNLOADS & RESOURCES
There are no Manuals available at the moment.
There are no Replacement-parts available at the moment.
There is no other information to show at the moment.
PuraShield UV +Ozone Performance Table
| PuraShield UV +Ozone | PuraShield UV +Ozone | PuraShield UV 130 | PuraShield UV 75 |
|---|---|---|---|
| Product Number | PSUV-87-03 | PSUV-130 | PSUV-75 |
| Power Supply (V/Hz) | 220-240V, 50/60Hz | 220-240V, 50/60Hz | 230-240 50/60Hz |
| Chlorine Production | Maximum Ozone Production 0.6g/hr | no chlorine production | no chlorine production |
| Maximum Power | 87W | 130W | 75W |
| Cell Current | N/A | N/A | N/A |
| Protection | IP54 | IP54 | IP54 |
| Max Temperature | 40 C | 40 C | 40 C |
| Plumbing Capacity | 40mm / 50mm. Max Working Pressure 300kPa | 40mm / 50mm. Max Working Pressure 300kPa | 40mm / 50mm |
PuraShield UV +Ozone
Product Number
PSUV-87-03
Power Supply (V/Hz)
220-240V, 50/60Hz
Chlorine Production
Maximum Ozone Production 0.6g/hr
Maximum Power
87W
Cell Current
N/A
Protection
IP54
Max Temperature
40 C
Plumbing Capacity
40mm / 50mm. Max Working Pressure 300kPa
PuraShield UV 130
Product Number
PSUV-130
Power Supply (V/Hz)
220-240V, 50/60Hz
Chlorine Production
no chlorine production
Maximum Power
130W
Cell Current
N/A
Protection
IP54
Max Temperature
40 C
Plumbing Capacity
40mm / 50mm. Max Working Pressure 300kPa
PuraShield UV 75
Product Number
PSUV-75
Power Supply (V/Hz)
230-240 50/60Hz
Chlorine Production
no chlorine production
Maximum Power
75W
Cell Current
N/A
Protection
IP54
Max Temperature
40 C
Plumbing Capacity
40mm / 50mm
