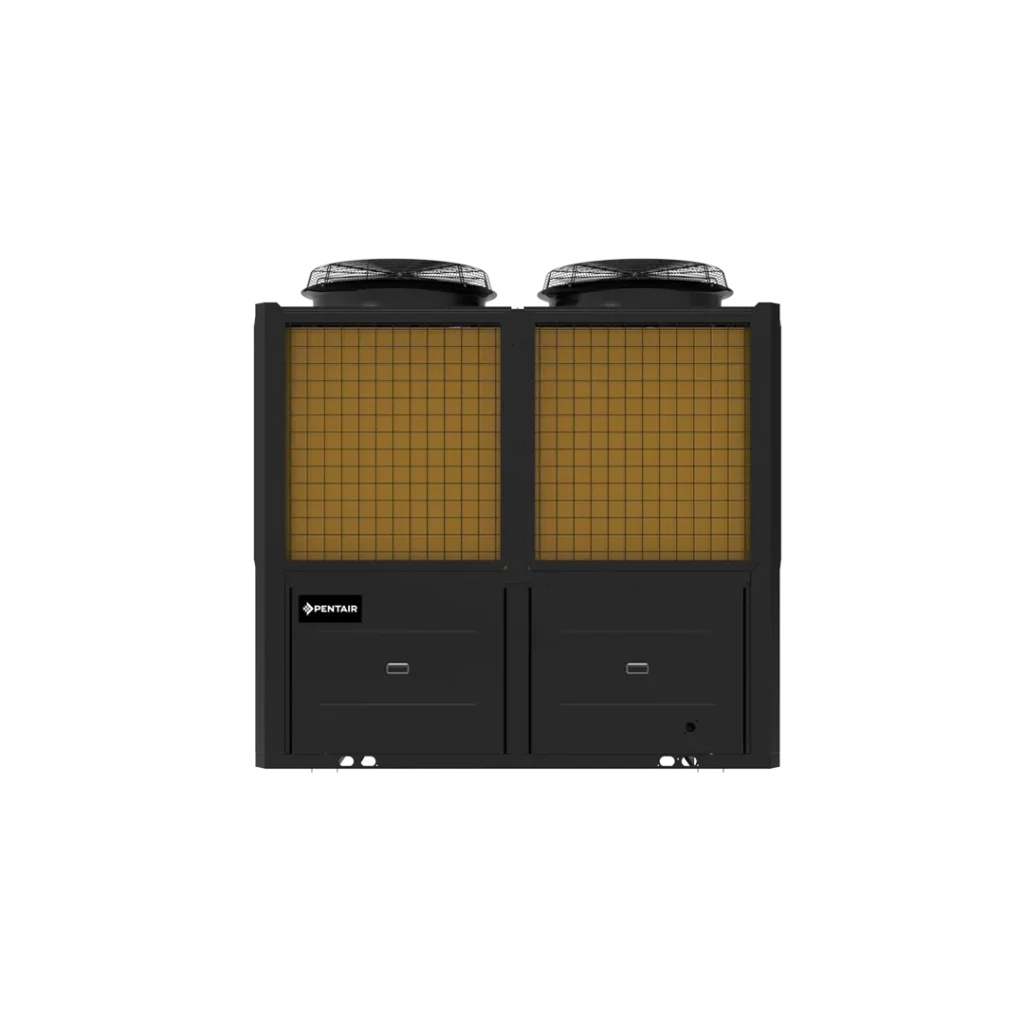

PWT Commercial Heat Pumps
HIGH PERFORMANCE HEAT PUMP
Pentair commercial heat pumps found around the world in resort, hotels, public swimming pools, schools and water parks. Wherever large bodies of water need to be reliably heated, you’ll find Pentair. Pentair commercial heat pumps are equipped with a multi-unit integrated control that centralises temperature control and fault diagnostics for a much easier and more practical interface. Incorporating a master-slave configuration into the design, mulitple units can work seemlessly together.
FEATURES
- Dual Coil Titanium Heat Exchanger - Compared with normal single coil heat exchangers, enlarges the heat exchanging surface that increases efficiency.
- Copeland scroll compressors - Regarded in the industry as the best.
- Variable Speed Fan - The fan speed will be adjusted automatically to reduce the input power and noise level to achieve energy saving and silent running.
- Heats, cools and offers auto defrost.
- Corrosion protection Hydrophilic Evaporator Coating.
- Powder coated steel enclosure.
- New Inverter models available.
DOWNLOADS & RESOURCES
There are no Replacement-parts available at the moment.
There is no other information to show at the moment.
PWT Commercial Heat Pumps Performance Table
| PWT-HP-68i | PWT-HP-135i | PWT-HP-250i | ||
|---|---|---|---|---|
| Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity | Capacity (kW) | 15~68 | 30~135 | 300.00 |
| Power (kW) | 0.91~11.15 | 1.88~22.13 | 3.81-40.85 | |
| COP | 6.1~16.5 | 6.1~16.5 | 6.12-16.10 | |
| Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity | Capacity (kW) | 11~50 | 22~100 | 230.00 |
| Power (kW) | 1.47~11 | 2.93~22 | 5.81-38.00 | |
| COP | 4.5~7.5 | 4.5~7.5 | 5.00-8.60 | |
| Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity | Capacity (kW) | 28 | 50 | 140.00 |
| Power (kW) | 11.2 | 16 | 14.05-35.48 | |
| EER | COP = 2.50 | COP = 3.10 | 3.10-4.15 | |
| Product Number | PWT-HP-68i | PWT-HP-135i | PWT-HP-250i | |
| Power Supply (V/Hz) | 380-415V~/3Ph~ | 380-415V~/3Ph~ | 380-415V~/3Ph~ | |
| Phase | 3P | 3P | 3P | |
| Max Current (A) | 19 | 40.9 | 76 | |
| Max Power (kW) | 12.34 | 25.1 | 40.8 | |
| Compressor Type | - | - | Hitachi DC type | |
| Water Flow (LPM) | 333-450 | 667 - 900 | 750 | |
| Sound Pressure (1m dBa) | 61 max | 62 max | 65 max | |
| Refrigerant | R32 | R32 | R410A |

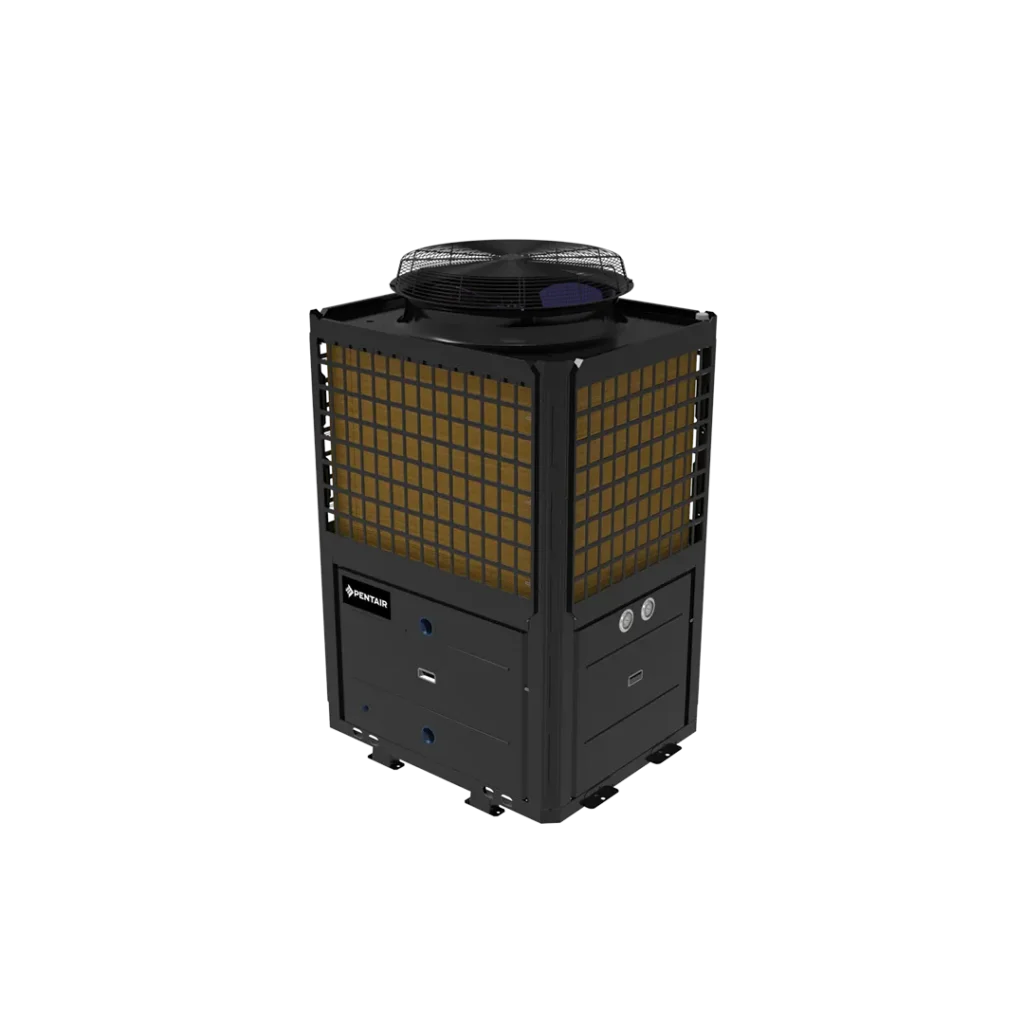

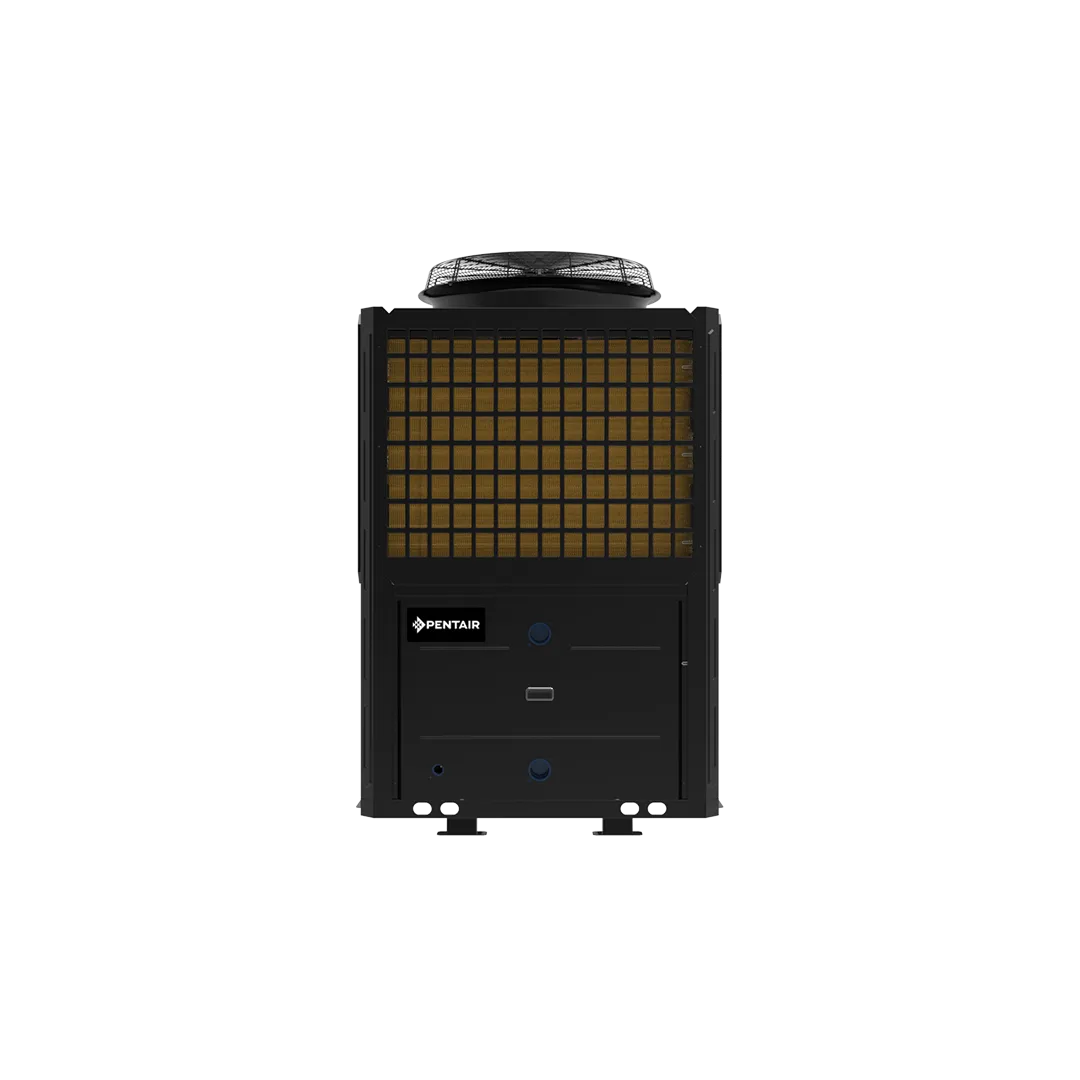

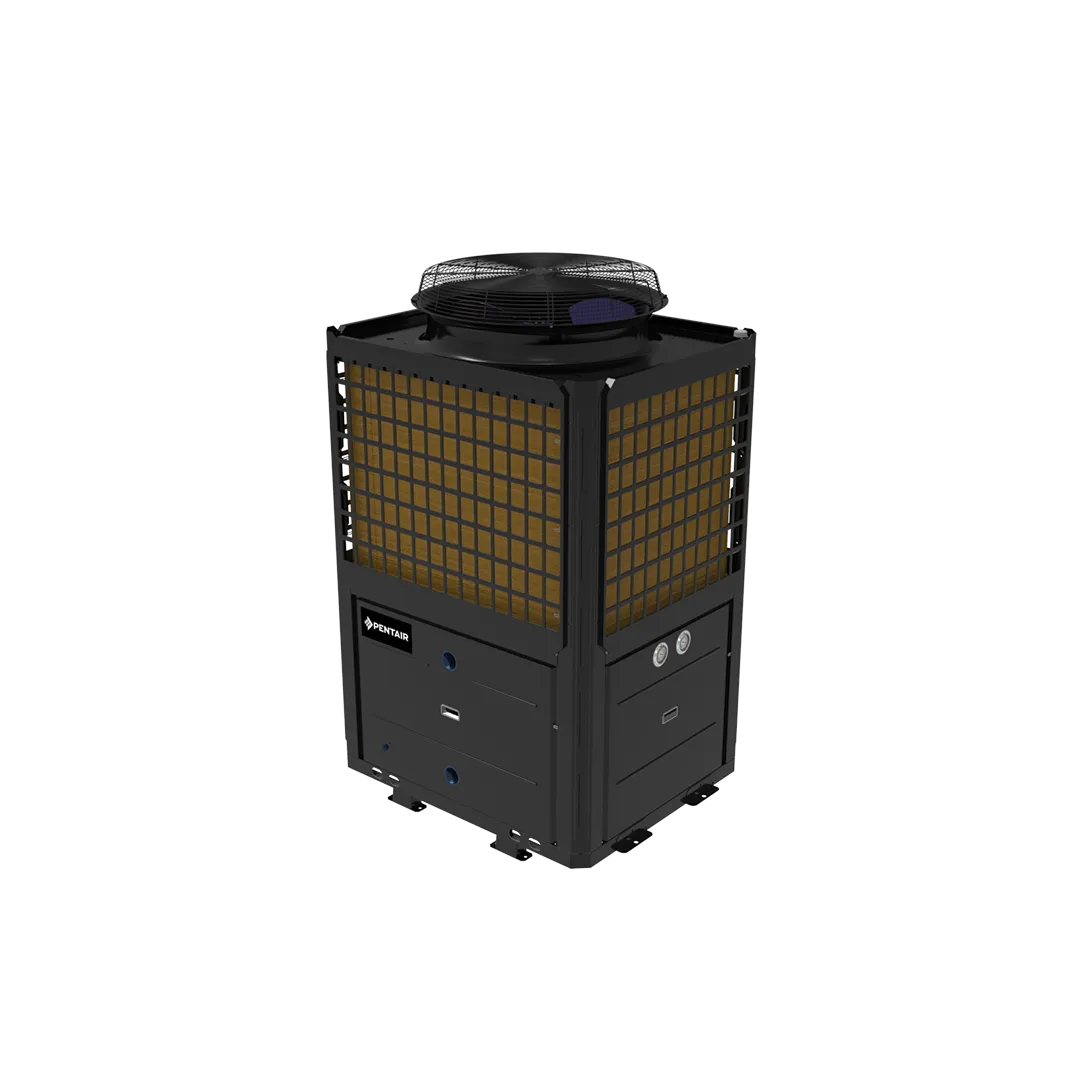

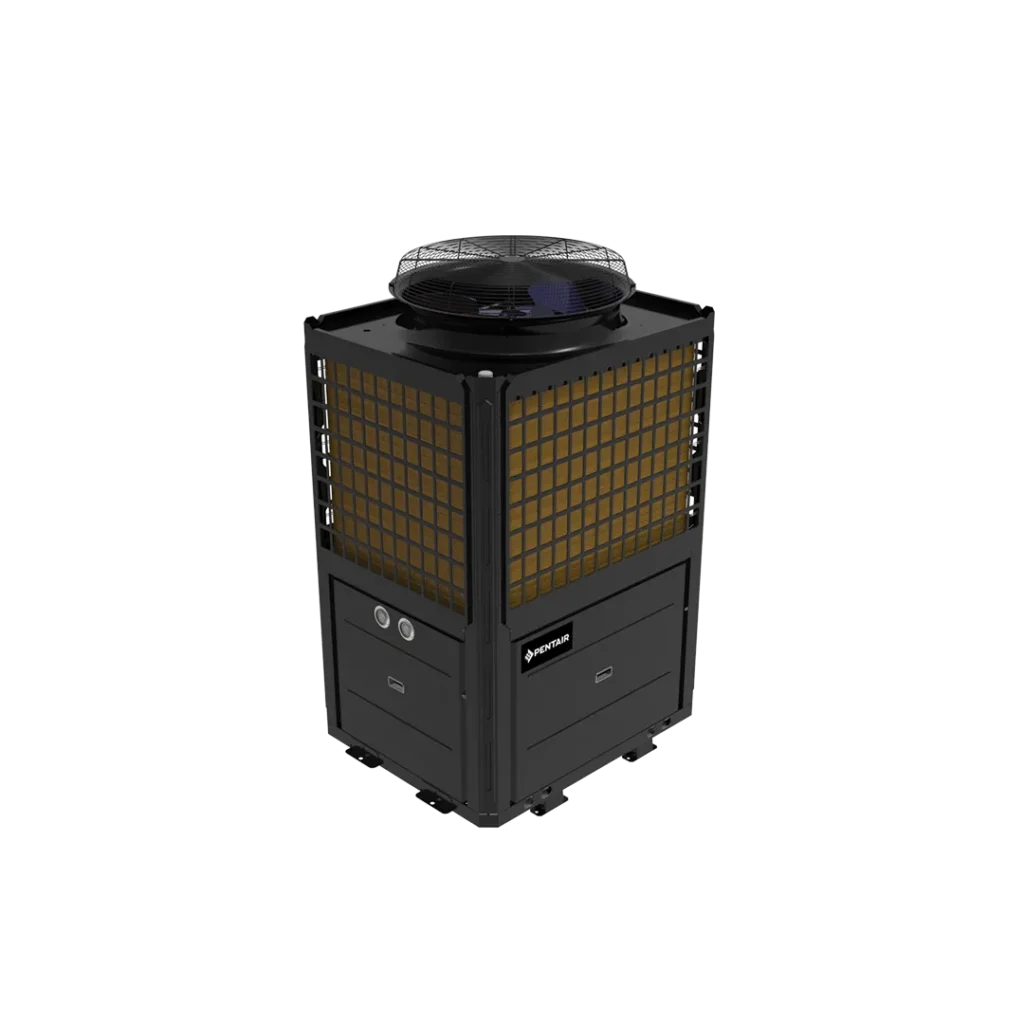

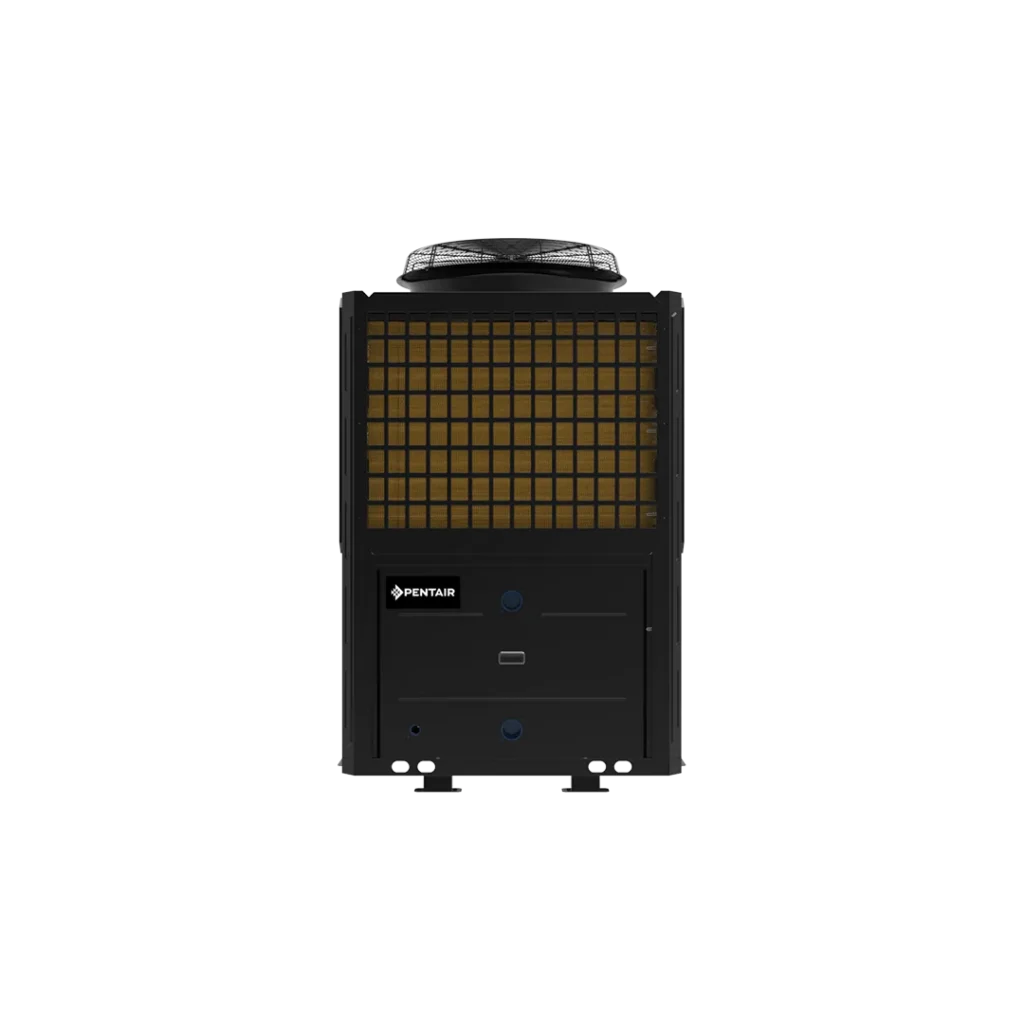

PWT-HP-68i
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
15~68
Power (kW)
0.91~11.15
COP
6.1~16.5
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
11~50
Power (kW)
1.47~11
COP
4.5~7.5
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
28
Power (kW)
11.2
EER
COP = 2.50
Product Number
PWT-HP-68i
Power Supply (V/Hz)
380-415V~/3Ph~
Phase
3P
Max Current (A)
19
Max Power (kW)
12.34
Compressor Type
-
Water Flow (LPM)
333-450
Sound Pressure (1m dBa)
61 max
Refrigerant
R32

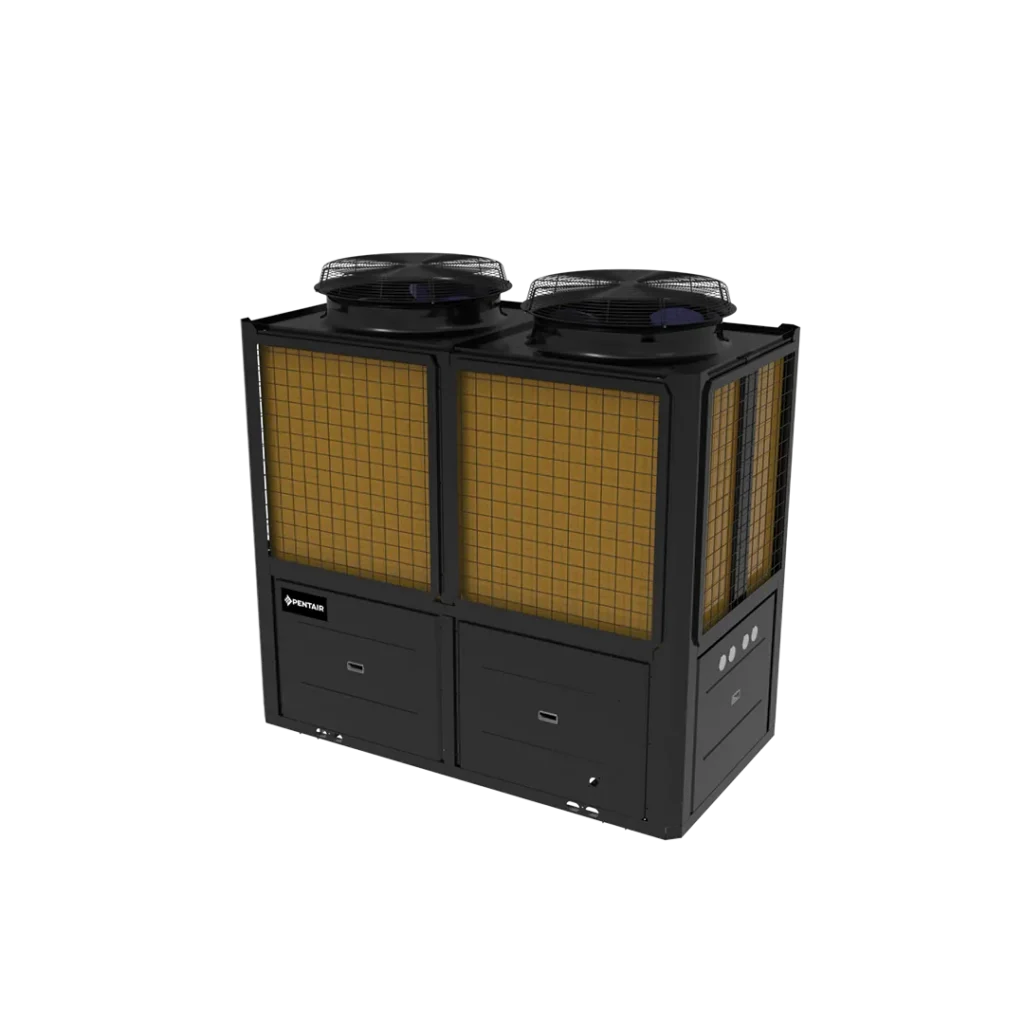

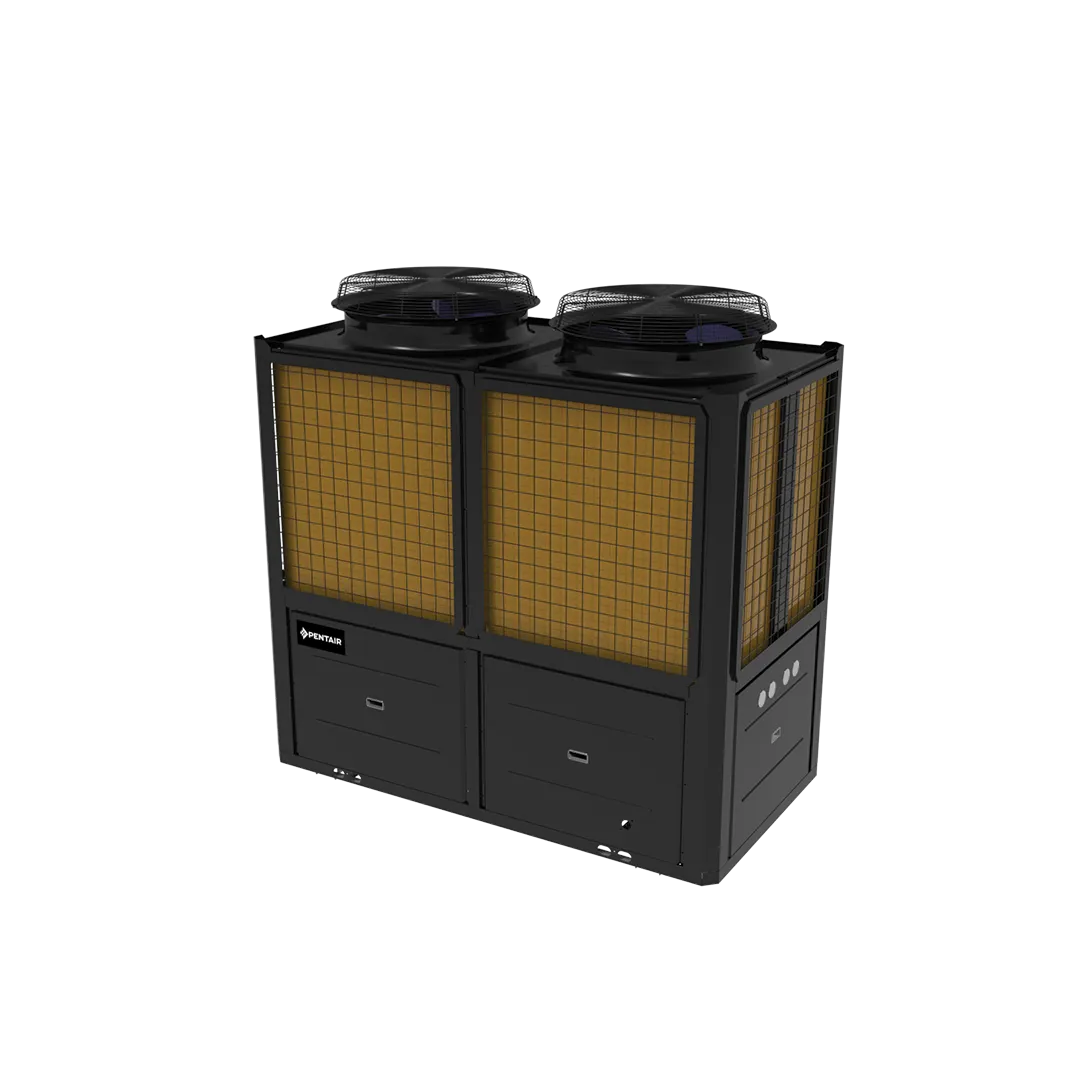

PWT-HP-135i
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
30~135
Power (kW)
1.88~22.13
COP
6.1~16.5
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
22~100
Power (kW)
2.93~22
COP
4.5~7.5
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
50
Power (kW)
16
EER
COP = 3.10
Product Number
PWT-HP-135i
Power Supply (V/Hz)
380-415V~/3Ph~
Phase
3P
Max Current (A)
40.9
Max Power (kW)
25.1
Compressor Type
-
Water Flow (LPM)
667 - 900
Sound Pressure (1m dBa)
62 max
Refrigerant
R32

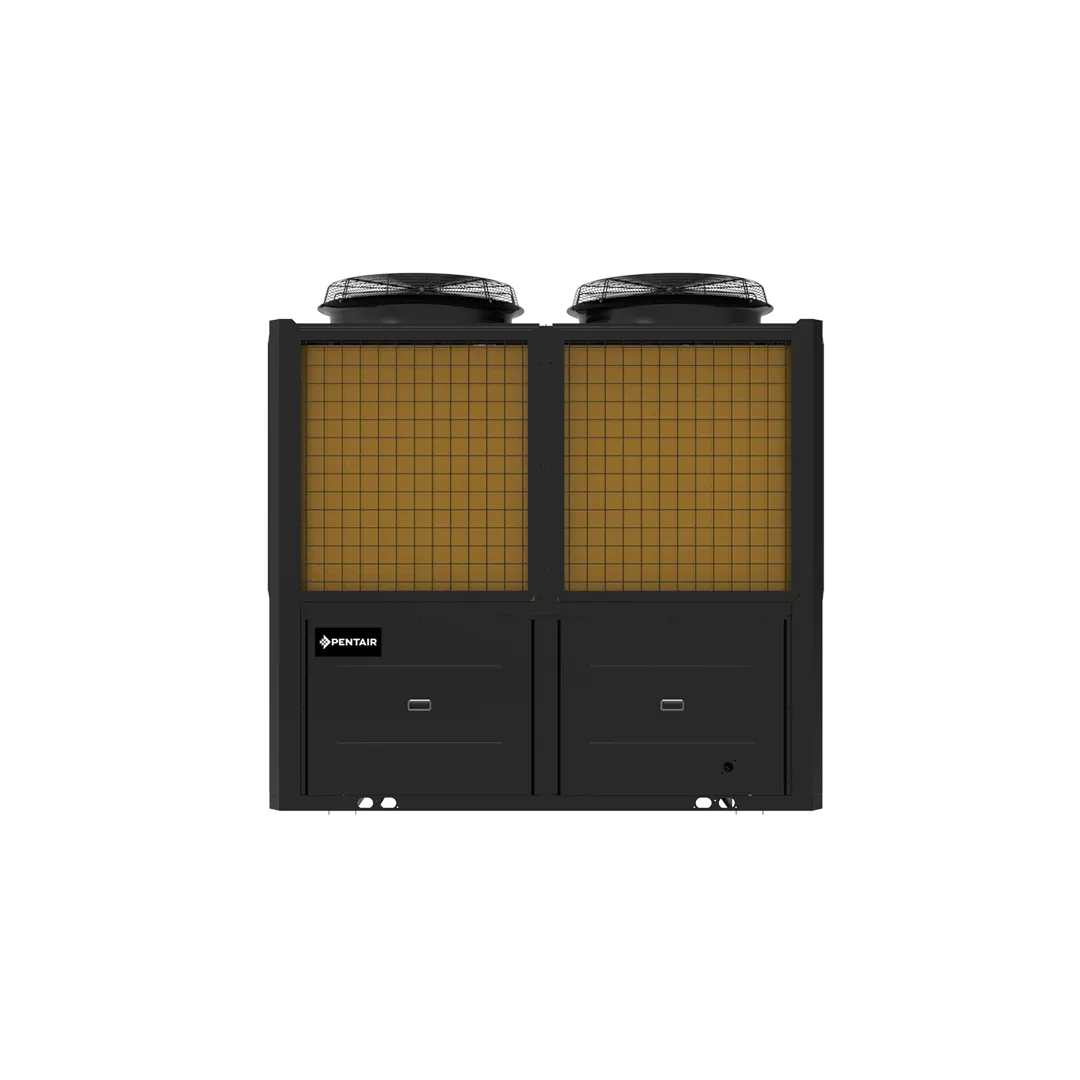

PWT-HP-250i
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
300.00
Power (kW)
3.81-40.85
COP
6.12-16.10
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
230.00
Power (kW)
5.81-38.00
COP
5.00-8.60
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
140.00
Power (kW)
14.05-35.48
EER
3.10-4.15
Product Number
PWT-HP-250i
Power Supply (V/Hz)
380-415V~/3Ph~
Phase
3P
Max Current (A)
76
Max Power (kW)
40.8
Compressor Type
Hitachi DC type
Water Flow (LPM)
750
Sound Pressure (1m dBa)
65 max
Refrigerant
R410A
