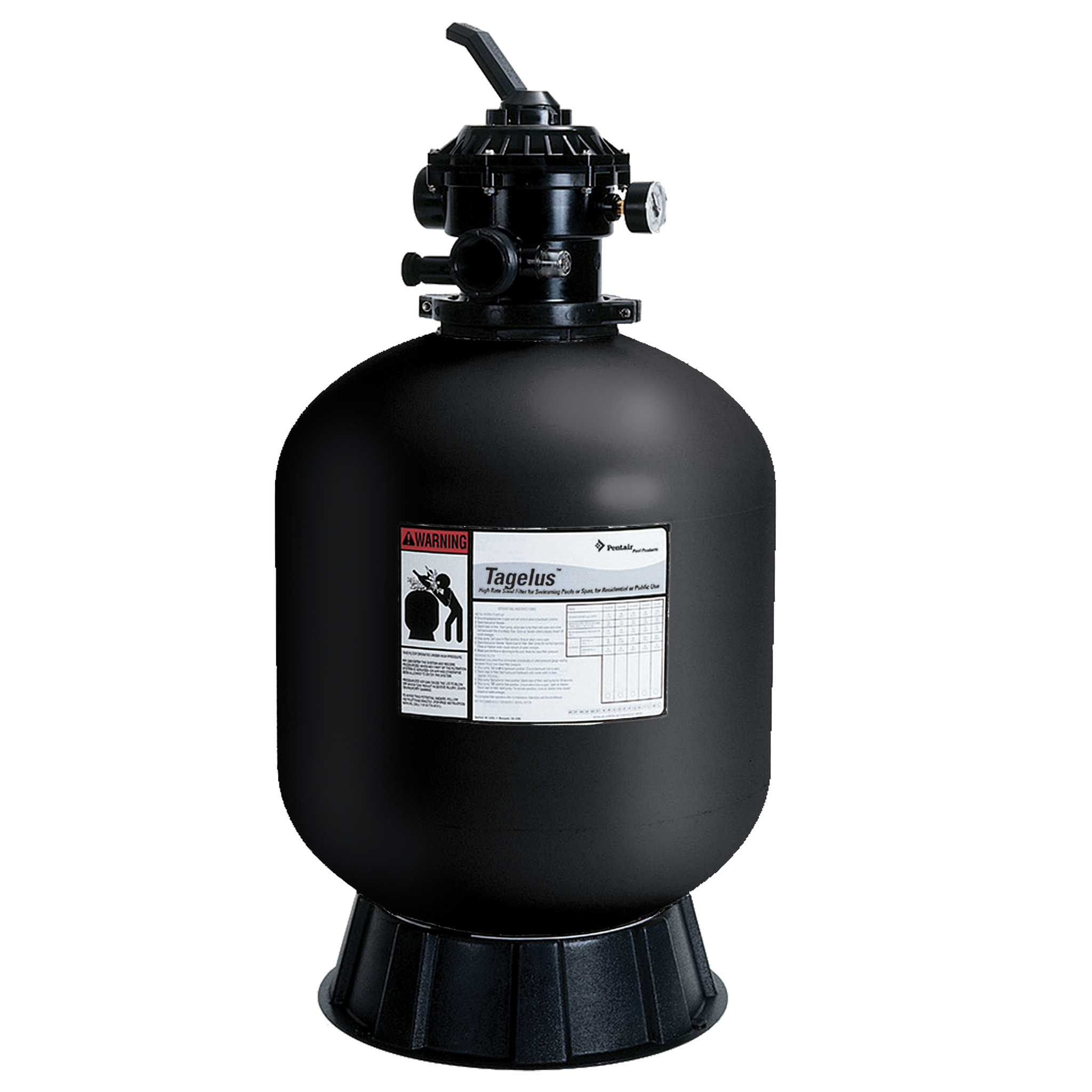

Tagelus Sand Filter
MAKING A TIME-PROVEN TECHNOLOGY BETTER
Our process creates a one-piece, fibreglass reinforced tank with superior strength and durability. Tagelus® filters are equipped with a six-position, clamp style, top-mounted multiport valve and barrel unions.
FEATURES
- Special lateral design provides superior flow characteristics and long filter cycles for economical operation.
- Maximum Operating Pressure 345kPa / 50psi.
- Combination water and sand drain makes servicing and winterizing fast and easy.
- 50 and 60D models standard with plastic clamp.
- 10 year pro-rata warranty - terms & conditions apply.

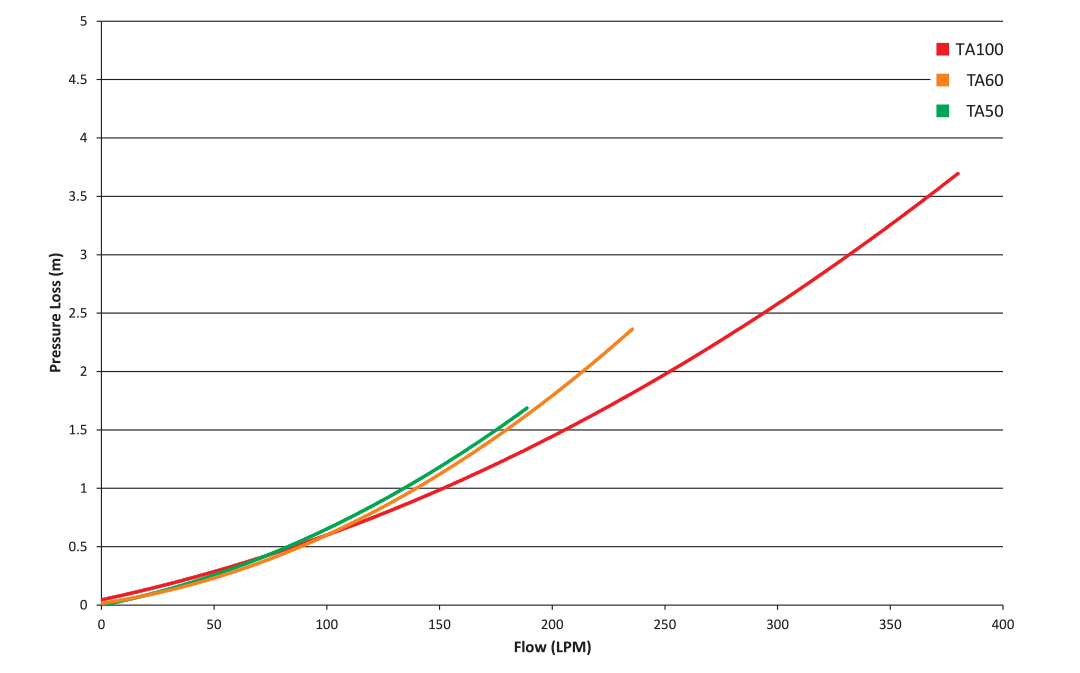

PRODUCT PERFORMANCE CHART
Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.
DOWNLOADS & RESOURCES
There is no other information to show at the moment.
Tagelus Sand Filter – Performance Table
| Tagelus Sand Filter | 140217 (24") | 145284 (24" w 2" MPV) | 140218 (30") |
|---|---|---|---|
| Filter Area (ft²/m²) | 3.1 / 0.3 | 3.1/0.3 | 4.9 / 0.5 |
| Max. Flow (LPM) | 228 | 250 | 379 |
| Min. Backwash (LPM) | 170 | 170 | 280 |
140217 (24")
Filter Area
3.1 / 0.3
Max. Flow (LPM)
228
Min. Backwash (LPM)
170
145284 (24" w 2" MPV)
Filter Area
3.1/0.3
Max. Flow (LPM)
250
Min. Backwash (LPM)
170
140218 (30")
Filter Area
4.9 / 0.5
Max. Flow (LPM)
379
Min. Backwash (LPM)
280
