Pentair

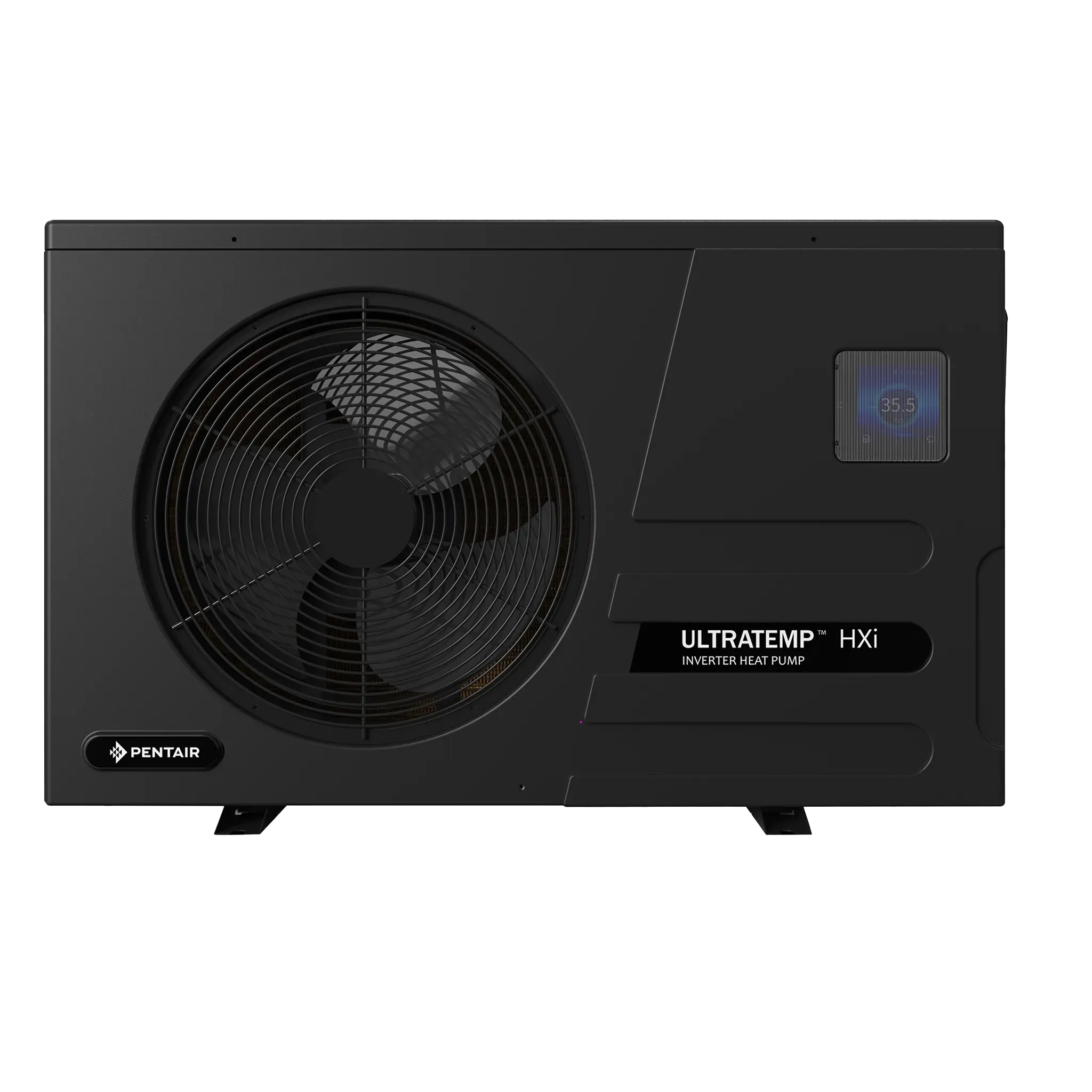

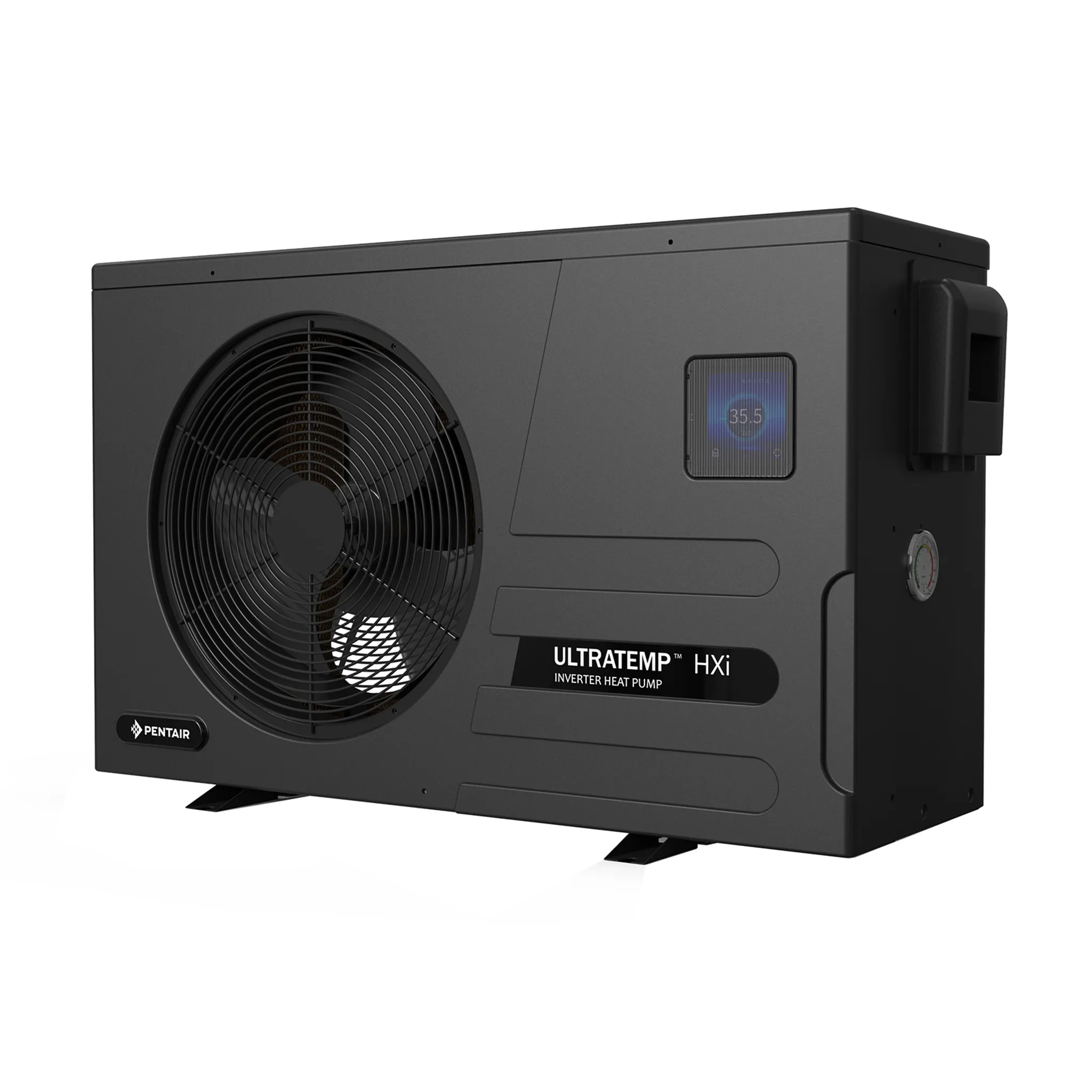

ULTRATEMP HXi
Inverter Heat Pump
The Pentair UltraTemp® HXi heat pump automatically heats or cools your pool according to the desired temperature. It adapts to outdoor conditions to ensure optimum bathing comfort while minimising energy consumption.
Equipped with full-inverter technology, the new Pentair UltraTemp® HXi heat pump delivers powerful, yet quiet, performance, thanks to the combination of a variable speed compressor and fan motor. They adjust their speed automatically following the operating mode selected by the user via the colour touchscreen or optional app.
QUICK LINKS
FEATURES
- Full inverter heat pump with variable speed compressor and fan motor.
- Wi-fi module included, compatible with app freely available on app store.
- Silent running mode, for neighbourhood peace and quiet.
- Energy efficiency among the highest in its class with COP ratings far in excess of standard heat pumps.
- Titanium threaded heat exchanger.
- Intuitive colour LCD touch screen.
- Heats, cools and offers auto defrost.
- 15 years warranty.
DOWNLOADS & RESOURCES
There is no other information to show at the moment.
ULTRATEMP HXi Performance Table
| HXi 9kW | HXi 12kW | HXi 16kW | HXi 20kW | HXi 24kW | HXi 28kW | HXi 35kW | ||
|---|---|---|---|---|---|---|---|---|
| Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity | Capacity (kW) | 2.3~9.0 | 2.3~9.0 | 3.1~16.0 | 3.1~16.0 | 3.1~16.0 | 3.1~16.0 | 3.1~16.0 |
| Power (kW) | 0.16~1.41 | 0.16~1.41 | 0.22~2.54 | 0.22~2.54 | 0.22~2.54 | 0.22~2.54 | 0.22~2.54 | |
| COP | 14.2~6.4 | 14.2~6.4 | 13.9~6.3 | 13.9~6.3 | 13.9~6.3 | 13.9~6.3 | 13.9~6.3 | |
| Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity | Capacity (kW) | 1.7~7.0 | 1.7~7.0 | 2.4~12.6 | 2.4~12.6 | 2.4~12.6 | 2.4~12.6 | 2.4~12.6 |
| Power (kW) | 0.24~1.46 | 0.24~1.46 | 0.34~2.73 | 0.34~2.73 | 0.34~2.73 | 0.34~2.73 | 0.34~2.73 | |
| COP | 7.2~4.8 | 7.2~4.8 | 7.0~4.6 | 7.0~4.6 | 7.0~4.6 | 7.0~4.6 | 7.0~4.6 | |
| Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity | Capacity (kW) | 3.15 | 3.15 | 5.61 | 5.61 | 5.61 | 5.61 | 5.61 |
| Power (kW) | 1.4 | 1.4 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |
| EER | 2.25 | 2.25 | 2.55 | 2.55 | 2.55 | 2.55 | 2.55 | |
| Product Number | UTHP-9-HXi | UTHP-12-HXi | UTHP-16-HXi | UTHP-20-HXi | UTHP-24-HXi | UTHP-28-Hxi | UTHP-35-HXi | |
| Power Supply (V/Hz) | 220-240 V / 50 Hz | 220-240 V / 50 Hz | 220-240 V / 50 Hz | 220-240 V / 50 Hz | 220-240 V / 50 Hz | 400-415V 3~ 50Hz | 400-415V 3~ 50Hz | |
| Phase | Single | Single | Single | Single | Single | 3 | 3 | |
| Max Current (A) | 9.0A | 12.0A | 16.0A | 20.0A | 24.0A | 28.0A | 35.0A | |
| Max Power (kW) | 2.1 | 3.8 | 5.5 | 7.2 | 8.9 | 10.6 | 12.3 | |
| Compressor Type | Mitsubishi | Panasonic | Mitsubishi | Panasonic | Mitsubishi | Panasonic | Mitsubishi | |
| Water Flow (LPM) | 53 | 86 | 119 | 152 | 185 | 218 | 251 | |
| Sound Pressure (1m dBa) | 39-50 | 42-53 | 39-51 | 42-54 | 39-52 | 42-55 | 39-53 | |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 | R32 |
HXi 9kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
2.3~9.0
Power (kW)
0.16~1.41
COP
14.2~6.4
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
1.7~7.0
Power (kW)
0.24~1.46
COP
7.2~4.8
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
3.15
Power (kW)
1.4
EER
2.25
Product Number
UTHP-9-HXi
Power Supply (V/Hz)
220-240 V / 50 Hz
Phase
Single
Max Current (A)
9.0A
Max Power (kW)
2.1
Compressor Type
Mitsubishi
Water Flow (LPM)
53
Sound Pressure (1m dBa)
39-50
Refrigerant
R32
HXi 12kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
2.3~9.0
Power (kW)
0.16~1.41
COP
14.2~6.4
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
1.7~7.0
Power (kW)
0.24~1.46
COP
7.2~4.8
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
3.15
Power (kW)
1.4
EER
2.25
Product Number
UTHP-12-HXi
Power Supply (V/Hz)
220-240 V / 50 Hz
Phase
Single
Max Current (A)
12.0A
Max Power (kW)
3.8
Compressor Type
Panasonic
Water Flow (LPM)
86
Sound Pressure (1m dBa)
42-53
Refrigerant
R32
HXi 16kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.1~16.0
Power (kW)
0.22~2.54
COP
13.9~6.3
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.4~12.6
Power (kW)
0.34~2.73
COP
7.0~4.6
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
5.61
Power (kW)
2.2
EER
2.55
Product Number
UTHP-16-HXi
Power Supply (V/Hz)
220-240 V / 50 Hz
Phase
Single
Max Current (A)
16.0A
Max Power (kW)
5.5
Compressor Type
Mitsubishi
Water Flow (LPM)
119
Sound Pressure (1m dBa)
39-51
Refrigerant
R32
HXi 20kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.1~16.0
Power (kW)
0.22~2.54
COP
13.9~6.3
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.4~12.6
Power (kW)
0.34~2.73
COP
7.0~4.6
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
5.61
Power (kW)
2.2
EER
2.55
Product Number
UTHP-20-HXi
Power Supply (V/Hz)
220-240 V / 50 Hz
Phase
Single
Max Current (A)
20.0A
Max Power (kW)
7.2
Compressor Type
Panasonic
Water Flow (LPM)
152
Sound Pressure (1m dBa)
42-54
Refrigerant
R32
HXi 24kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.1~16.0
Power (kW)
0.22~2.54
COP
13.9~6.3
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.4~12.6
Power (kW)
0.34~2.73
COP
7.0~4.6
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
5.61
Power (kW)
2.2
EER
2.55
Product Number
UTHP-24-HXi
Power Supply (V/Hz)
220-240 V / 50 Hz
Phase
Single
Max Current (A)
24.0A
Max Power (kW)
8.9
Compressor Type
Mitsubishi
Water Flow (LPM)
185
Sound Pressure (1m dBa)
39-52
Refrigerant
R32
HXi 28kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.1~16.0
Power (kW)
0.22~2.54
COP
13.9~6.3
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.4~12.6
Power (kW)
0.34~2.73
COP
7.0~4.6
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
5.61
Power (kW)
2.2
EER
2.55
Product Number
UTHP-28-Hxi
Power Supply (V/Hz)
400-415V 3~ 50Hz
Phase
3
Max Current (A)
28.0A
Max Power (kW)
10.6
Compressor Type
Panasonic
Water Flow (LPM)
218
Sound Pressure (1m dBa)
42-55
Refrigerant
R32
HXi 35kW
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.1~16.0
Power (kW)
0.22~2.54
COP
13.9~6.3
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.4~12.6
Power (kW)
0.34~2.73
COP
7.0~4.6
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
5.61
Power (kW)
2.2
EER
2.55
Product Number
UTHP-35-HXi
Power Supply (V/Hz)
400-415V 3~ 50Hz
Phase
3
Max Current (A)
35.0A
Max Power (kW)
12.3
Compressor Type
Mitsubishi
Water Flow (LPM)
251
Sound Pressure (1m dBa)
39-53
Refrigerant
R32
