Pentair

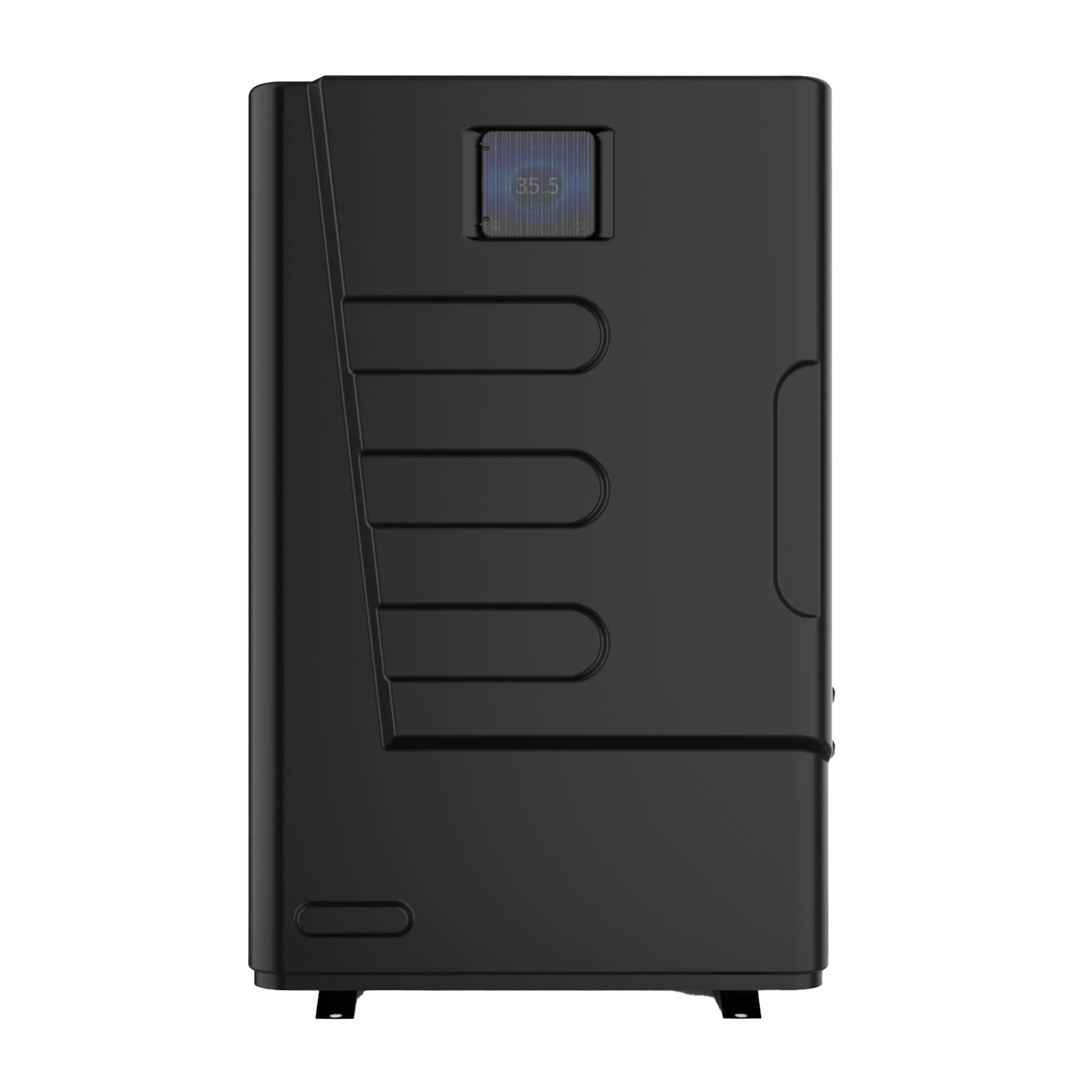

ULTRATEMP VXi
TOP VENTING INVERTER HEAT PUMP
The Pentair UltraTemp® VXi heat pump automatically heats or cools your pool according to the desired temperature. It adapts to outdoor conditions to ensure optimum bathing comfort while minimising energy consumption.
Equipped with full-inverter technology, the new Pentair UltraTemp® VXi heat pump delivers powerful, yet quiet, performance, thanks to the combination of a variable speed compressor and fan motor. They adjust their speed automatically following the operating mode selected by the user via the colour touchscreen or optional app.
QUICK LINKS
FEATURES
- High-performance, affordable heat pump with premium features.
- Energy efficiency among the highest in its class with COP ratings far in excess of standard heat pumps.
- Top vent design perfect for placement in restricted locations.
- Titanium threaded heat exchanger.
- Intuitive LCD touch screen.
- Heats, cools and offers auto defrost.
- Corrosion protection Hydrophilic Evaporator Coating.
- Filter dryer eliminates ice and dirt block and also attenuates noise for quiet operation.
- 15 years warranty - terms & conditions apply.
DOWNLOADS & RESOURCES
There are no Replacement-parts available at the moment.
Click here for VXi Heater Calculator
ULTRATEMP VXi Performance Table
| ULTRATEMP VXi 13KW | UTHP-17-VXi | UTHP-20-VXi | UTHP-24-VXi | UTHP-28-VXi | UTHP-32-VXi | ||
|---|---|---|---|---|---|---|---|
| Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity | Capacity (kW) | 3.5 - 13.5 | 3.8 - 17.5 | 5.2 - 20.6 | 6.2 - 24.0 | 8.5 - 28.0 | 10.4 - 32.0 |
| Power (kW) | 0.26 - 2.08 | 0.27 - 2.73 | 0.38 - 3.17 | 0.43 - 3.53 | 0.6 - 4.31 | 0.77 - 4.92 | |
| COP | 13.5 - 6.5 | 13.8 - 6.4 | 13.6 - 6.5 | 14.5 - 6.8 | 14.2 - 6.5 | 13.5 - 6.5 | |
| Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity | Capacity (kW) | 2.4 - 10.0 | 2.8 - 12.8 | 4.1 - 14.8 | 4.8 - 17.5 | 5.6 - 20.3 | 6.5 - 22.5 |
| Power (kW) | 0.32 - 2.13 | 0.37 - 2.78 | 0.55 - 3.29 | 0.64 - 3.65 | 0.71 - 4.14 | 0.88 - 5.0 | |
| COP | 7.5 - 4.7 | 7.5 - 4.6 | 7.4 - 4.5 | 7.5 - 4.8 | 7.9 - 4.9 | 7.4 - 4.5 | |
| Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity | Capacity (kW) | 6.2 | 6.9 | 12.2 | 13.5 | 14.5 | 14.8 |
| Power (kW) | 1.78 | 2.1 | 3.8 | 3.5 | 4.5 | 4.80 | |
| EER | 3.5 | 3.2 | 3.2 | 3.86 | 3.22 | 3.08 | |
| Product Number | UTHP-13-VXi | UTHP-17-VXi | UTHP-20-VXi | UTHP-24-VXi | UTHP-28-VXi | UTHP-32-VXi | |
| Power Supply (V/Hz) | 230-240V, 50Hz | 230-240V, 50Hz | 230-240V, 50Hz | 230-240V, 50Hz | 230-240V, 50Hz | 400-415V,3P 50Hz | |
| Phase | UTHP-13-VXi | Single | Single | Single | Single | Single | |
| Max Current (A) | 11.3A | 13.3A | 21.2A | 22.8A | 23.6A | 14.73A | |
| Max Power (kW) | |||||||
| Compressor Type | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | |
| Water Flow (LPM) | 108 | 133 | 158 | 167 | 200 | 250 | |
| Sound Pressure (1m dBa) | 41-53 | 43-54 | 44-55 | 45-56 | 47-58 | 48-60 | |
| Refrigerant | R32 | R32 | R32 | R32 | R32 | R32 |
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.5 - 13.5
Power (kW)
0.26 - 2.08
COP
13.5 - 6.5
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.4 - 10.0
Power (kW)
0.32 - 2.13
COP
7.5 - 4.7
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
6.2
Power (kW)
1.78
EER
3.5
Product Number
UTHP-13-VXi
Power Supply (V/Hz)
230-240V, 50Hz
Phase
UTHP-13-VXi
Max Current (A)
11.3A
Max Power (kW)
Compressor Type
Panasonic
Water Flow (LPM)
108
Sound Pressure (1m dBa)
41-53
Refrigerant
R32
UTHP-17-VXi
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
3.8 - 17.5
Power (kW)
0.27 - 2.73
COP
13.8 - 6.4
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
2.8 - 12.8
Power (kW)
0.37 - 2.78
COP
7.5 - 4.6
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
6.9
Power (kW)
2.1
EER
3.2
Product Number
UTHP-17-VXi
Power Supply (V/Hz)
230-240V, 50Hz
Phase
Single
Max Current (A)
13.3A
Max Power (kW)
Compressor Type
Panasonic
Water Flow (LPM)
133
Sound Pressure (1m dBa)
43-54
Refrigerant
R32
UTHP-20-VXi
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
5.2 - 20.6
Power (kW)
0.38 - 3.17
COP
13.6 - 6.5
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
4.1 - 14.8
Power (kW)
0.55 - 3.29
COP
7.4 - 4.5
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
12.2
Power (kW)
3.8
EER
3.2
Product Number
UTHP-20-VXi
Power Supply (V/Hz)
230-240V, 50Hz
Phase
Single
Max Current (A)
21.2A
Max Power (kW)
Compressor Type
Panasonic
Water Flow (LPM)
158
Sound Pressure (1m dBa)
44-55
Refrigerant
R32
UTHP-24-VXi
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
6.2 - 24.0
Power (kW)
0.43 - 3.53
COP
14.5 - 6.8
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
4.8 - 17.5
Power (kW)
0.64 - 3.65
COP
7.5 - 4.8
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
13.5
Power (kW)
3.5
EER
3.86
Product Number
UTHP-24-VXi
Power Supply (V/Hz)
230-240V, 50Hz
Phase
Single
Max Current (A)
22.8A
Max Power (kW)
Compressor Type
Panasonic
Water Flow (LPM)
167
Sound Pressure (1m dBa)
45-56
Refrigerant
R32
UTHP-28-VXi
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
8.5 - 28.0
Power (kW)
0.6 - 4.31
COP
14.2 - 6.5
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
5.6 - 20.3
Power (kW)
0.71 - 4.14
COP
7.9 - 4.9
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
14.5
Power (kW)
4.5
EER
3.22
Product Number
UTHP-28-VXi
Power Supply (V/Hz)
230-240V, 50Hz
Phase
Single
Max Current (A)
23.6A
Max Power (kW)
Compressor Type
Panasonic
Water Flow (LPM)
200
Sound Pressure (1m dBa)
47-58
Refrigerant
R32
UTHP-32-VXi
Ambient 27 °C Water 26 °C in / 28 °C out 80% Humidity
Capacity (kW)
10.4 - 32.0
Power (kW)
0.77 - 4.92
COP
13.5 - 6.5
Ambient 15 °C Water 26 °C in / 28 °C out 70% Humidity
Capacity (kW)
6.5 - 22.5
Power (kW)
0.88 - 5.0
COP
7.4 - 4.5
Ambient 35 °C Water 30 °C in / 28 °C out 41% Humidity
Capacity (kW)
14.8
Power (kW)
4.80
EER
3.08
Product Number
UTHP-32-VXi
Power Supply (V/Hz)
400-415V,3P 50Hz
Phase
Single
Max Current (A)
14.73A
Max Power (kW)
Compressor Type
Panasonic
Water Flow (LPM)
250
Sound Pressure (1m dBa)
48-60
Refrigerant
R32
