Products > Pumps > Pump - Single Speed > WhisperFlo Pump

Pentair

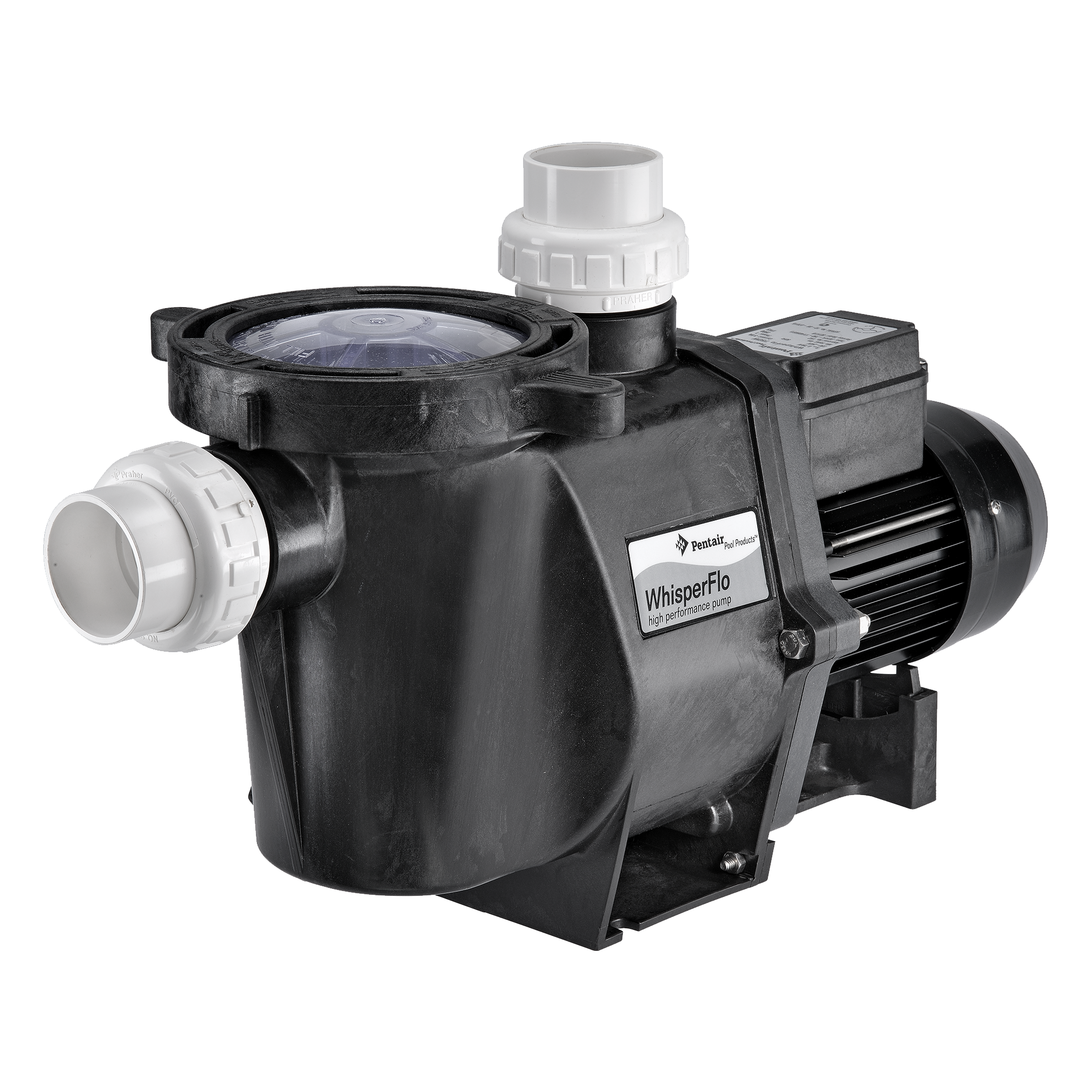

WhisperFlo Pump

HIGH PERFORMANCE PUMPS

TheWhisperFlo® pump delivers maximum circulation efficiency at the lowest operating cost and long, trouble-free life with minimal maintenance. Whisperflo incorporates the unique FunnelFlo diffuser and high-efficiency impeller to maximize water flow and energy efficiency while minimizing turbulence and noise.

Available in 4 different sizes to perfectly match your pool.

  • WHFL-750-1P   – WhisperFlo 750
  • WHFL-1100-1P – WhisperFlo 1100
  • WHFL-1500-1P – WhisperFlo 1500
  • WHFL-2100-1P – WhisperFlo 2100

FEATURES

  • Unique FunnelFlo diffuser and high-efficiency impeller maximize water flow and energy efficiency while minimising turbulence and noise.
  • 3 years limited warranty - terms & conditions apply.
  • Specially engineered design assures whisper-quiet operation.
  • Oversized strainer basket and volute extends time between cleaning.
  • See-through lid makes inspection fast and easy and the engineered polymer will remain clear for years.
  • Lower HP’s deliver higher performance than industry standard.
  • Compatible with all cleaning systems, various filters and jet action spas.
  • Heavy-duty/durable construction is designed for long life.
  • Designed for residential and commercial applications.
  • User friendly Cam & Rampâ„¢ lid is easy to remove and quickly locks in place with a quarter turn.

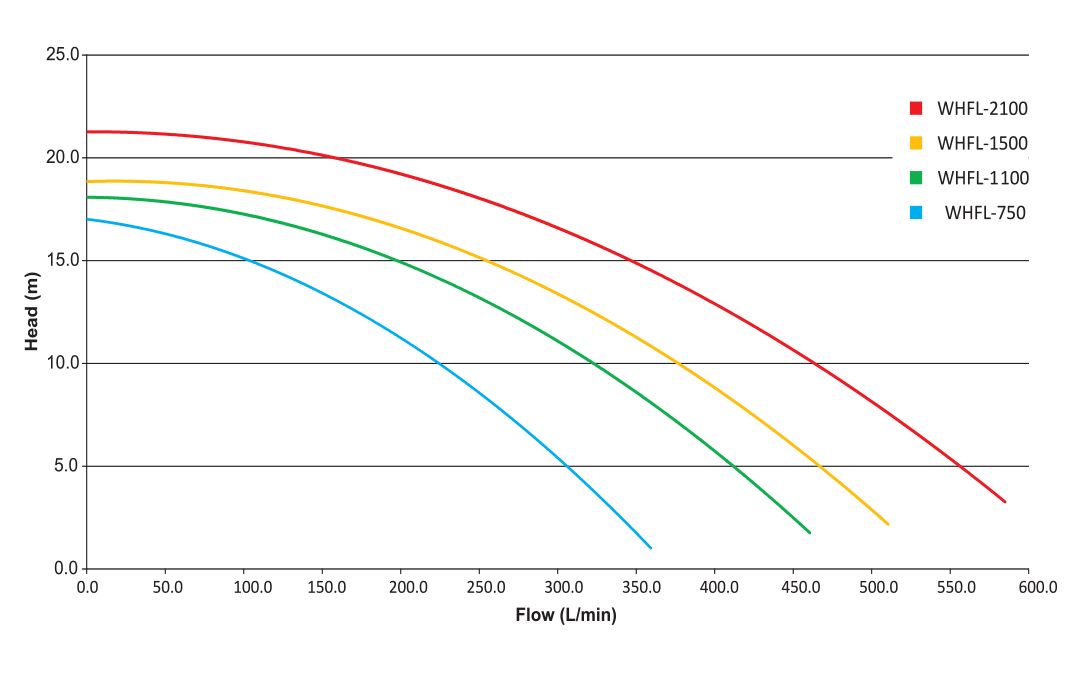

PRODUCT PERFORMANCE CHART

Each pool product's performance can vary. These charts show the relationship between the series of factors that affect the product’s performance. Understanding this chart helps you choose the most suitable product for your application.

  • 1 Compare how each model performs under different conditions.
  • 2 Choose the right product for your desired needs.
  • 3 Ensure you're selecting a product that can handle your system's demands efficiently.

DOWNLOADS & RESOURCES

Brochures
Manuals
Replacement Parts
Other

There is no other information to show at the moment.

WhisperFlo Pump Performance Table

WhisperFlo Pump WhisperFlo 750 WhisperFlo 1100 WhisperFlo 1500 WhisperFlo 2100
Product Number WHFL-750-1PWHFL-1100-1PWHFL-1500-1PWHFL-2100-1P
Voltage (VAC) 230-240230-240230-240230-240
Full Load (A) 3.8 5.5 6.3 9
Power Input (P1, W) 890135016002020
Power Output (P2, W) 67094511201610
Nominal Power (hp) 11.523
Locked Rotor Current (A) 14222842
Capacitor (uF) 3025352 x 25
dBA 53616266
Suction (mm) 50505050
Return (mm) 50505050
WhisperFlo 750
Product Number
WHFL-750-1P
Voltage (VAC)
230-240
Full Load (A)
3.8
Power Input (P1, W)
890
Power Output (P2, W)
670
Nominal Power (hp)
1
Locked Rotor Current (A)
14
Capacitor (uF)
30
dBA
53
Suction (mm)
50
Return (mm)
50
WhisperFlo 1100
Product Number
WHFL-1100-1P
Voltage (VAC)
230-240
Full Load (A)
5.5
Power Input (P1, W)
1350
Power Output (P2, W)
945
Nominal Power (hp)
1.5
Locked Rotor Current (A)
22
Capacitor (uF)
25
dBA
61
Suction (mm)
50
Return (mm)
50
WhisperFlo 1500
Product Number
WHFL-1500-1P
Voltage (VAC)
230-240
Full Load (A)
6.3
Power Input (P1, W)
1600
Power Output (P2, W)
1120
Nominal Power (hp)
2
Locked Rotor Current (A)
28
Capacitor (uF)
35
dBA
62
Suction (mm)
50
Return (mm)
50
WhisperFlo 2100
Product Number
WHFL-2100-1P
Voltage (VAC)
230-240
Full Load (A)
9
Power Input (P1, W)
2020
Power Output (P2, W)
1610
Nominal Power (hp)
3
Locked Rotor Current (A)
42
Capacitor (uF)
2 x 25
dBA
66
Suction (mm)
50
Return (mm)
50
